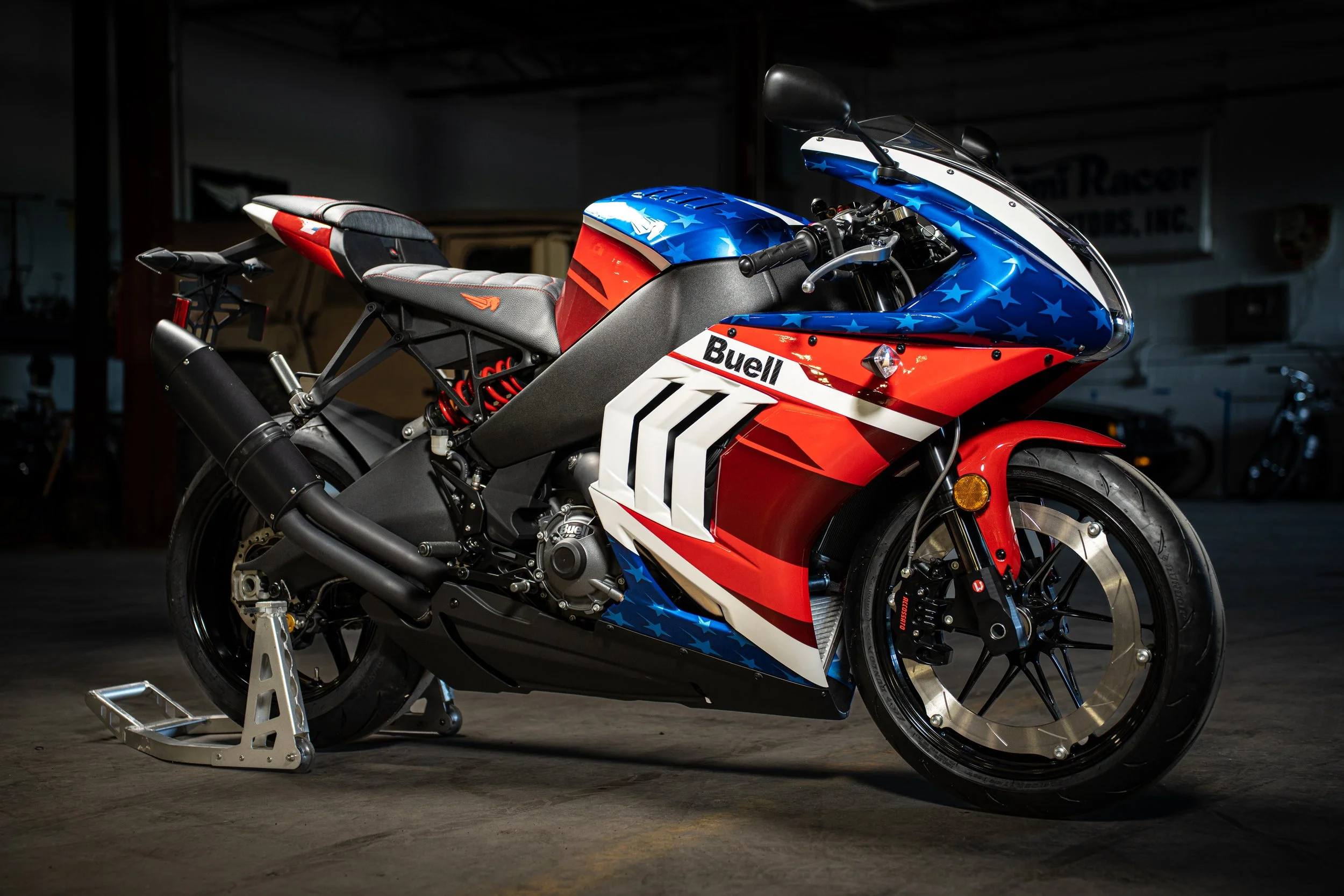

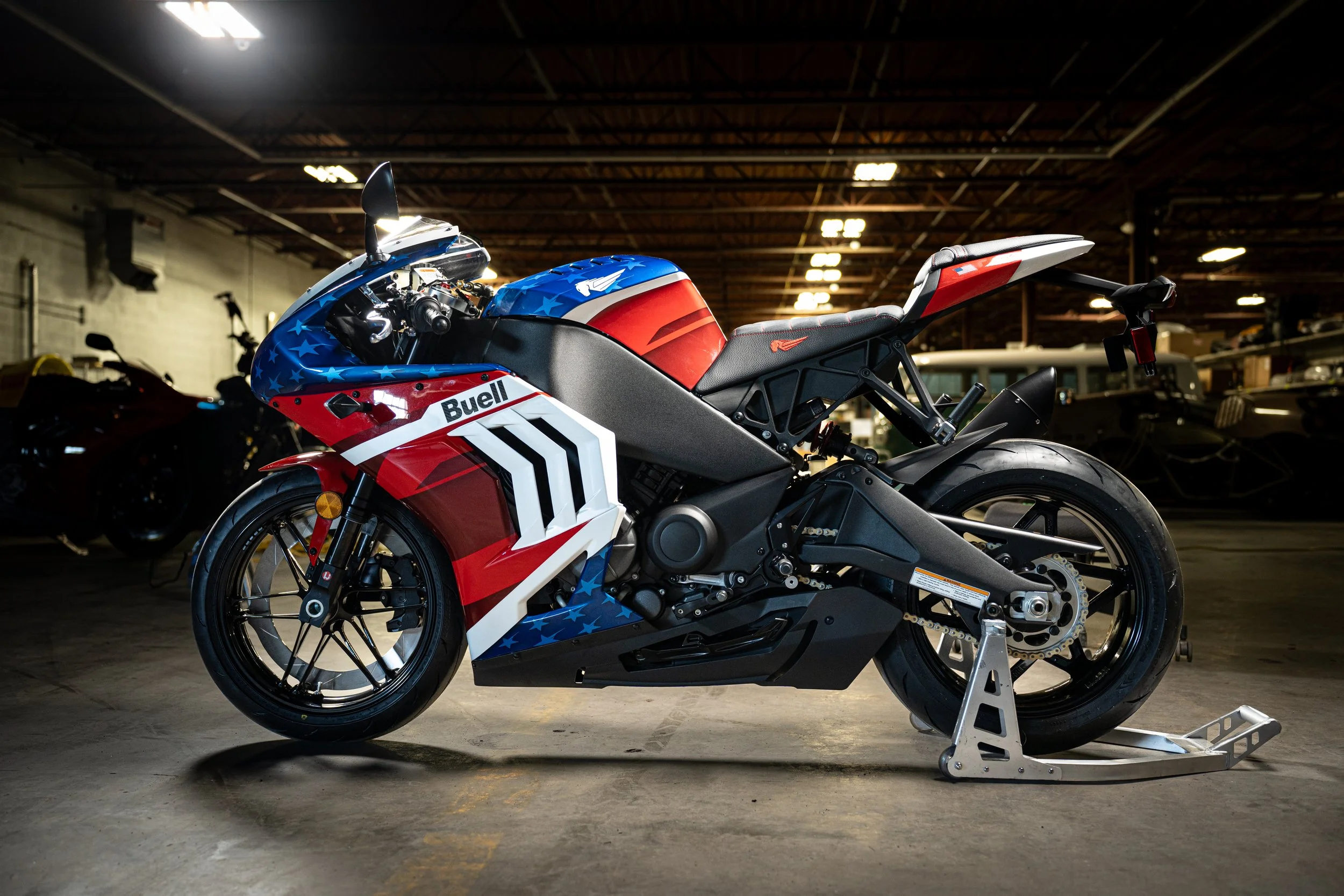

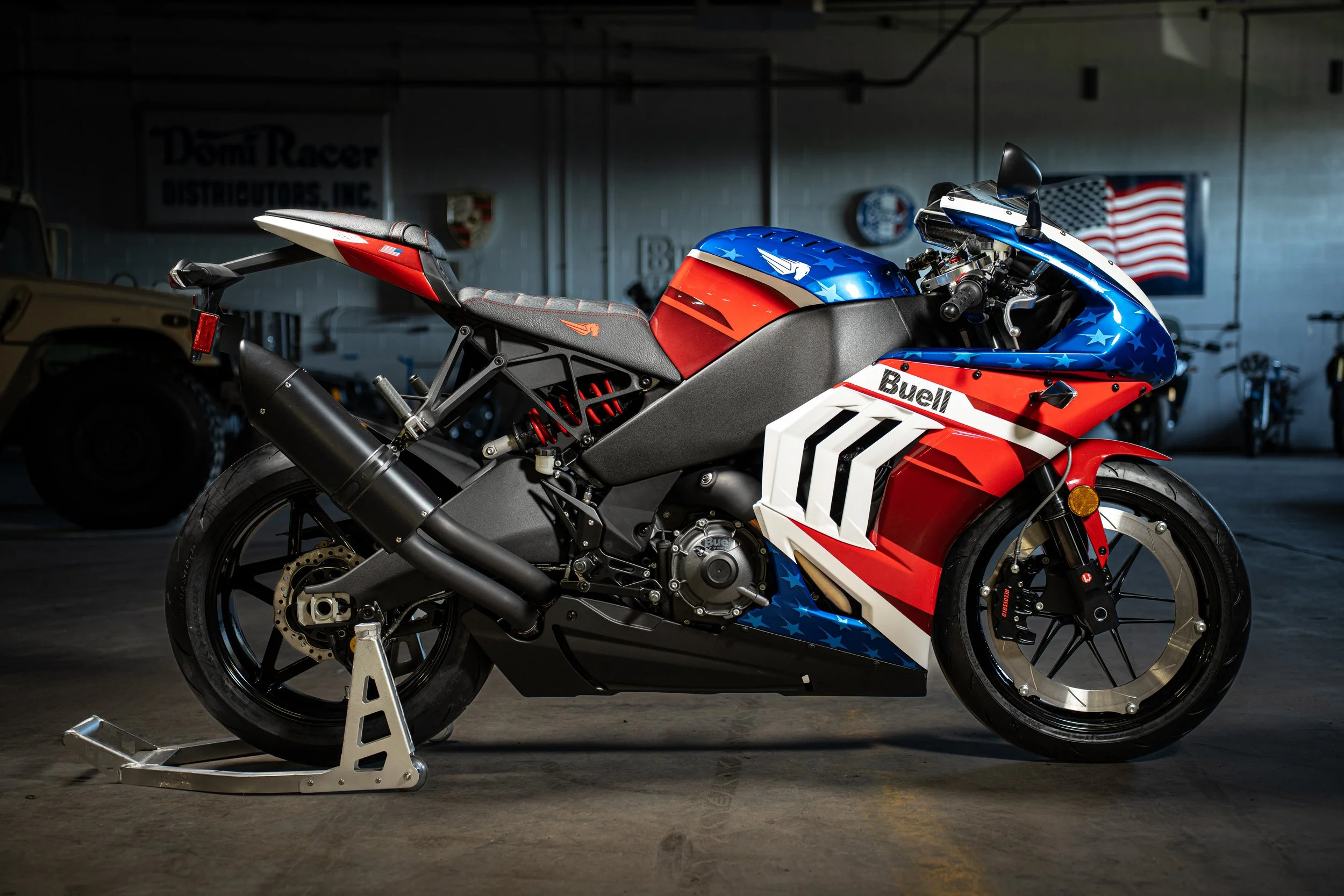

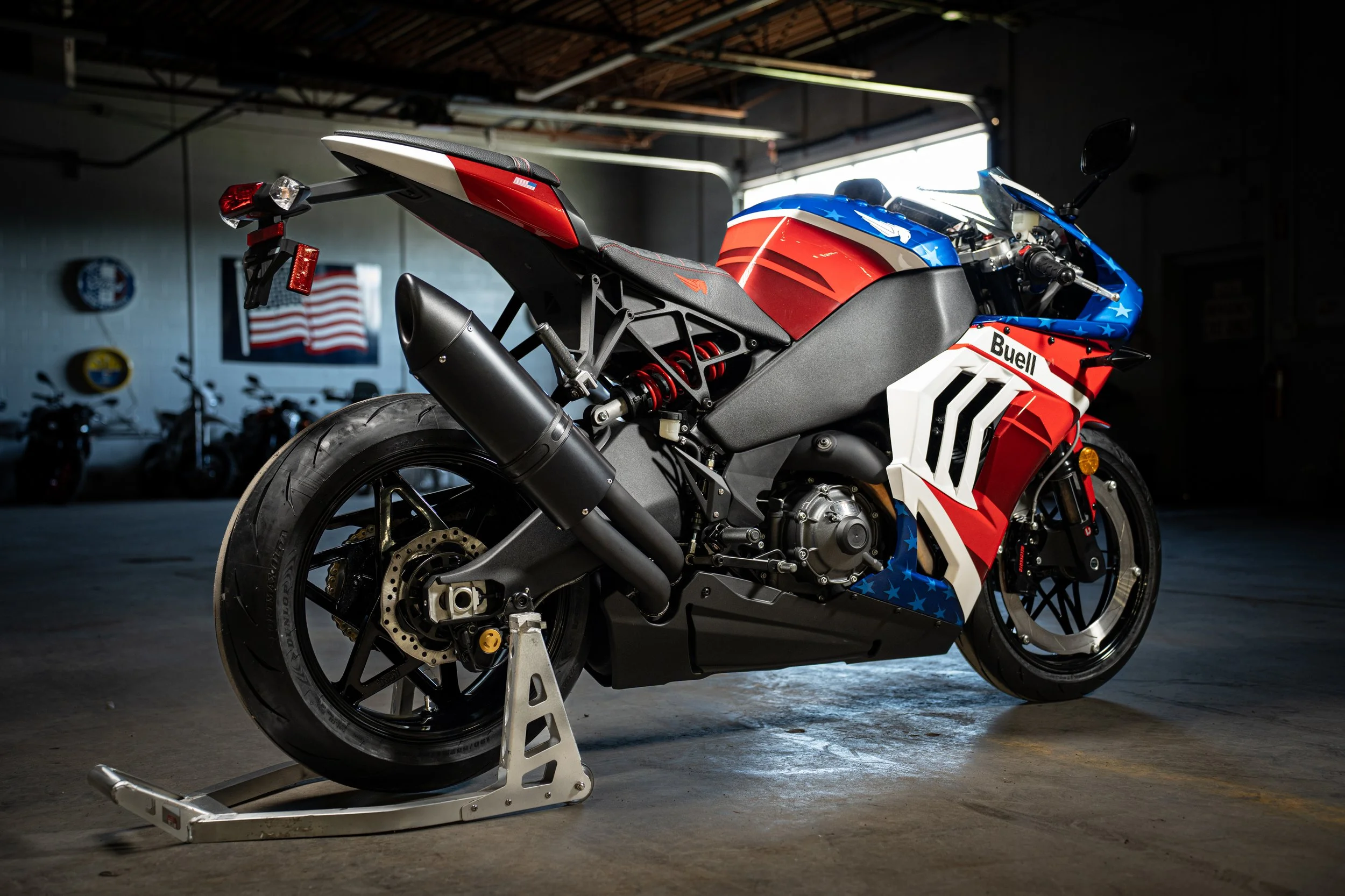

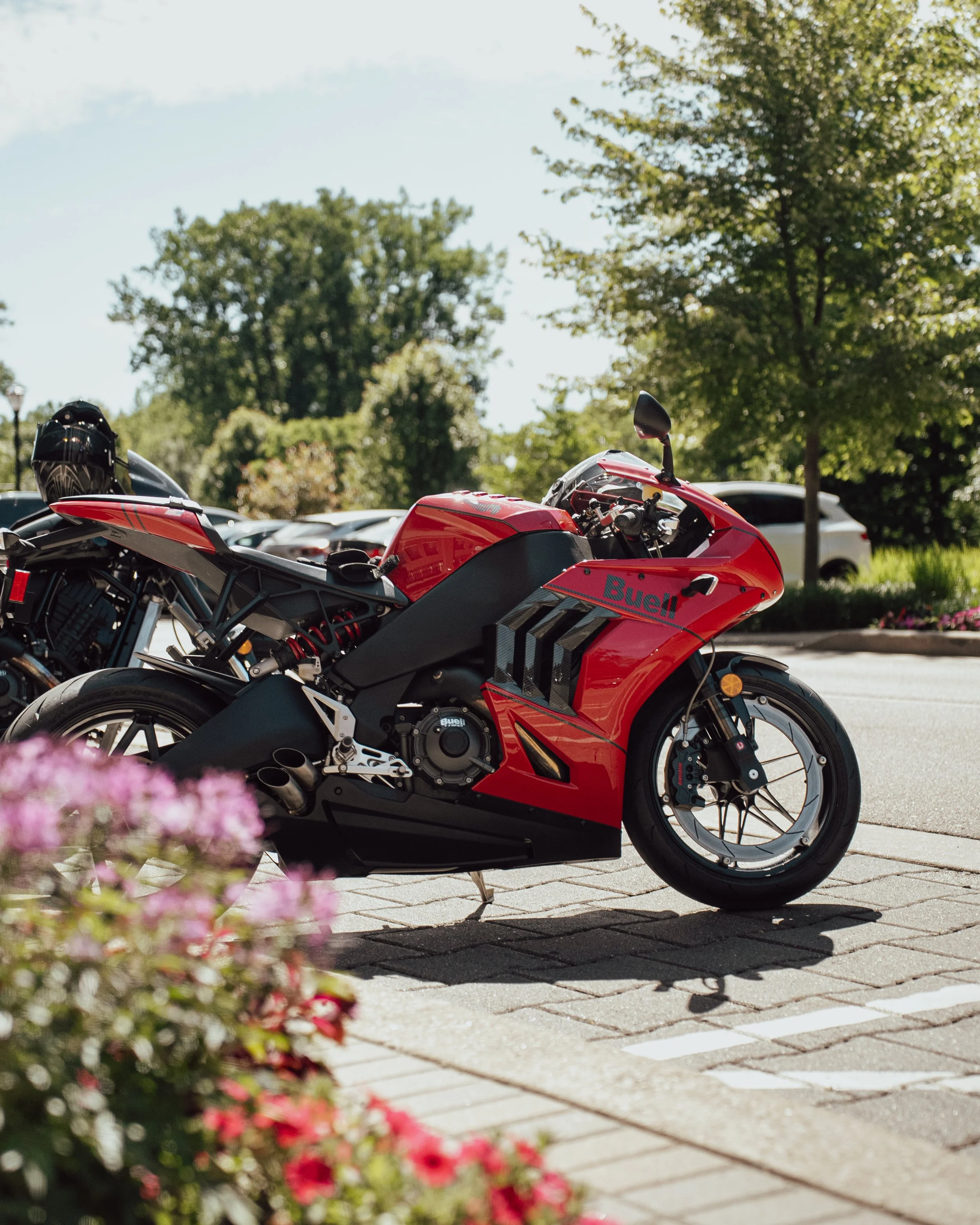

2023 BUELL HAMMERHEAD 1190

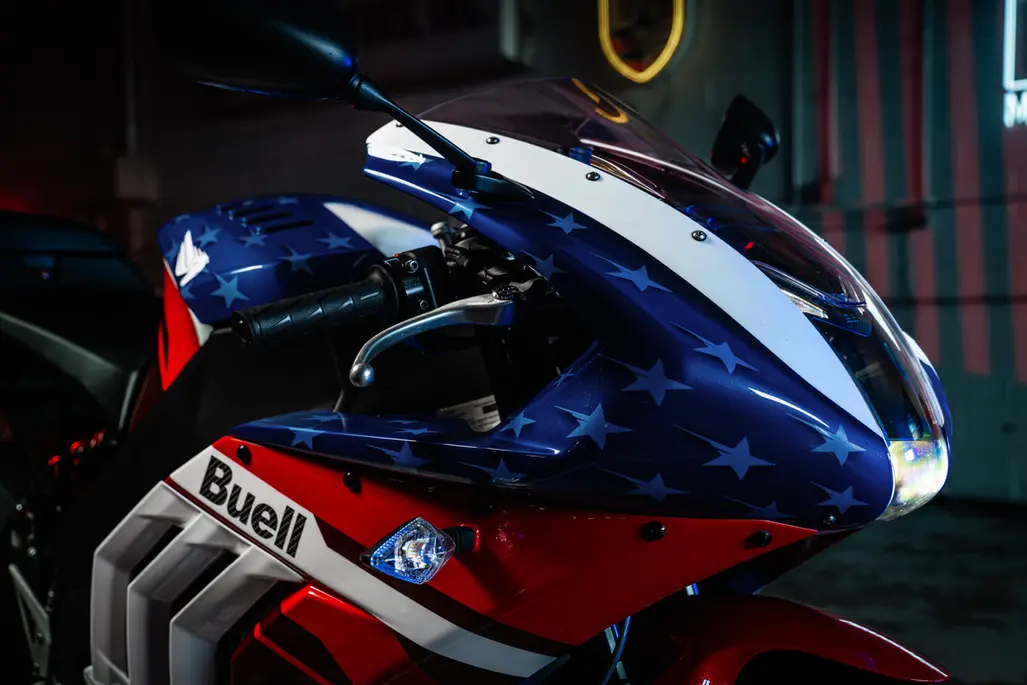

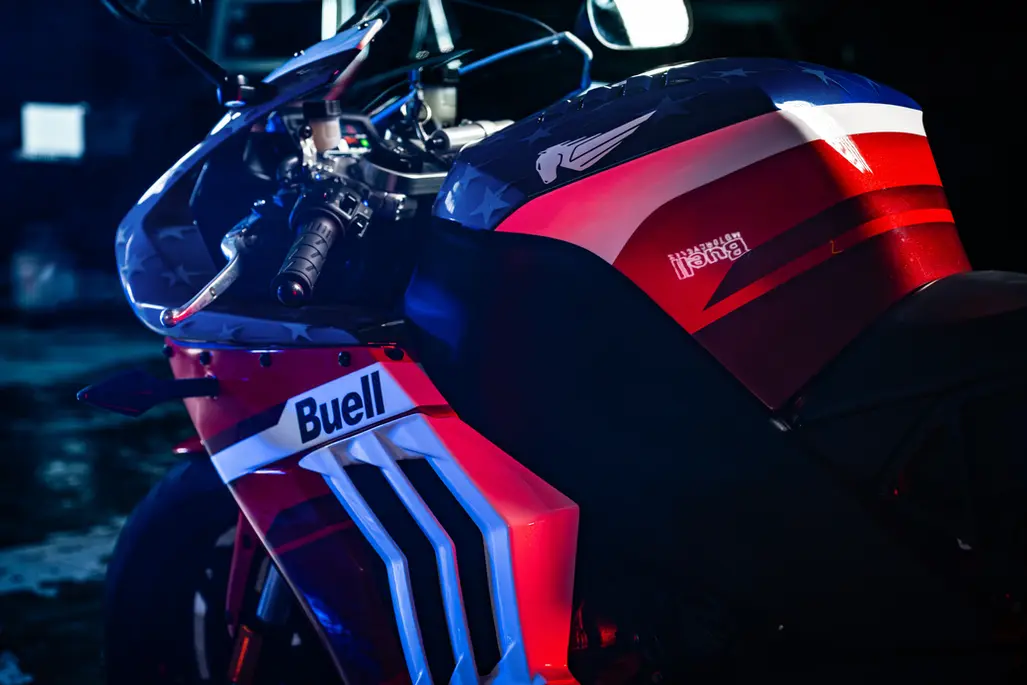

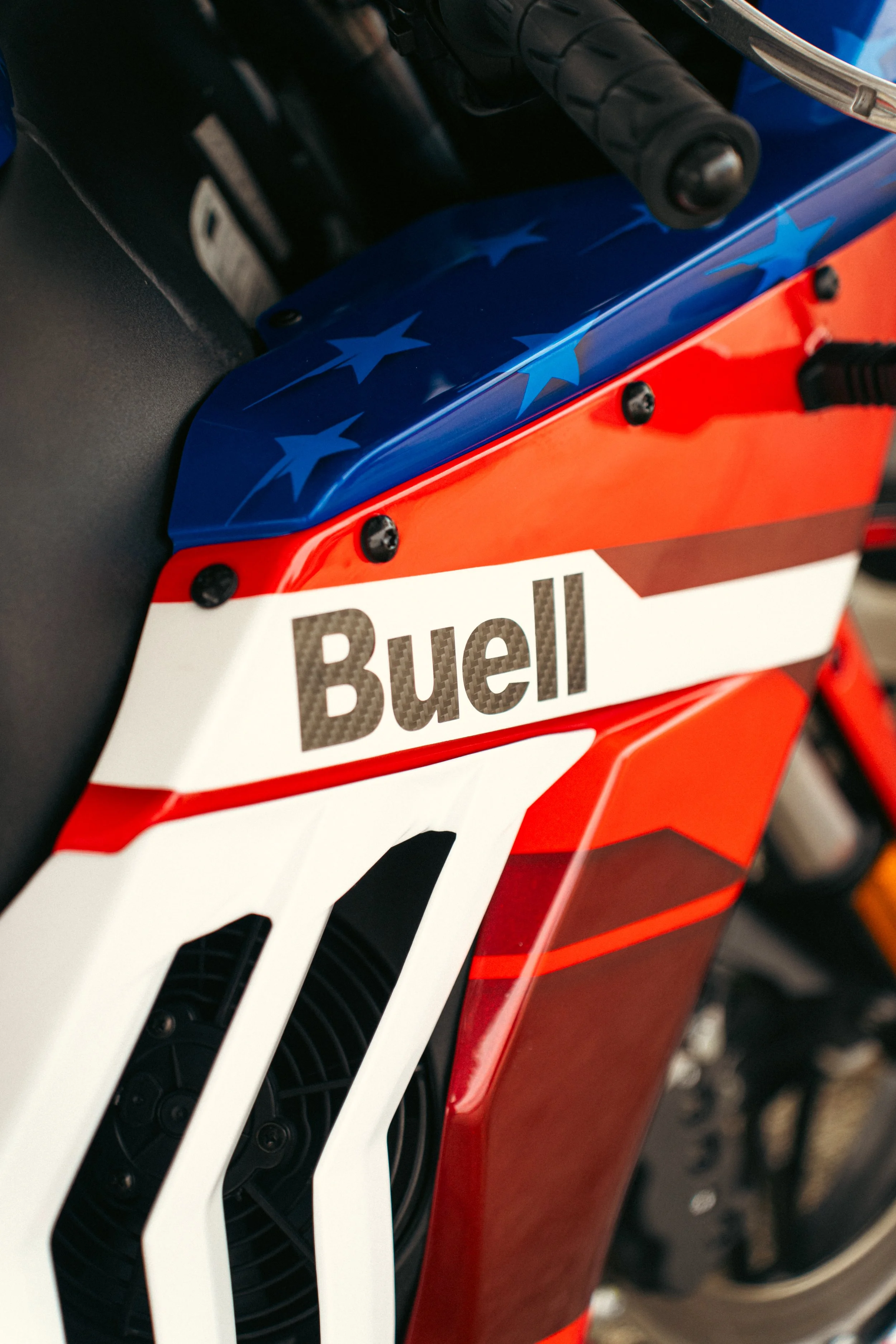

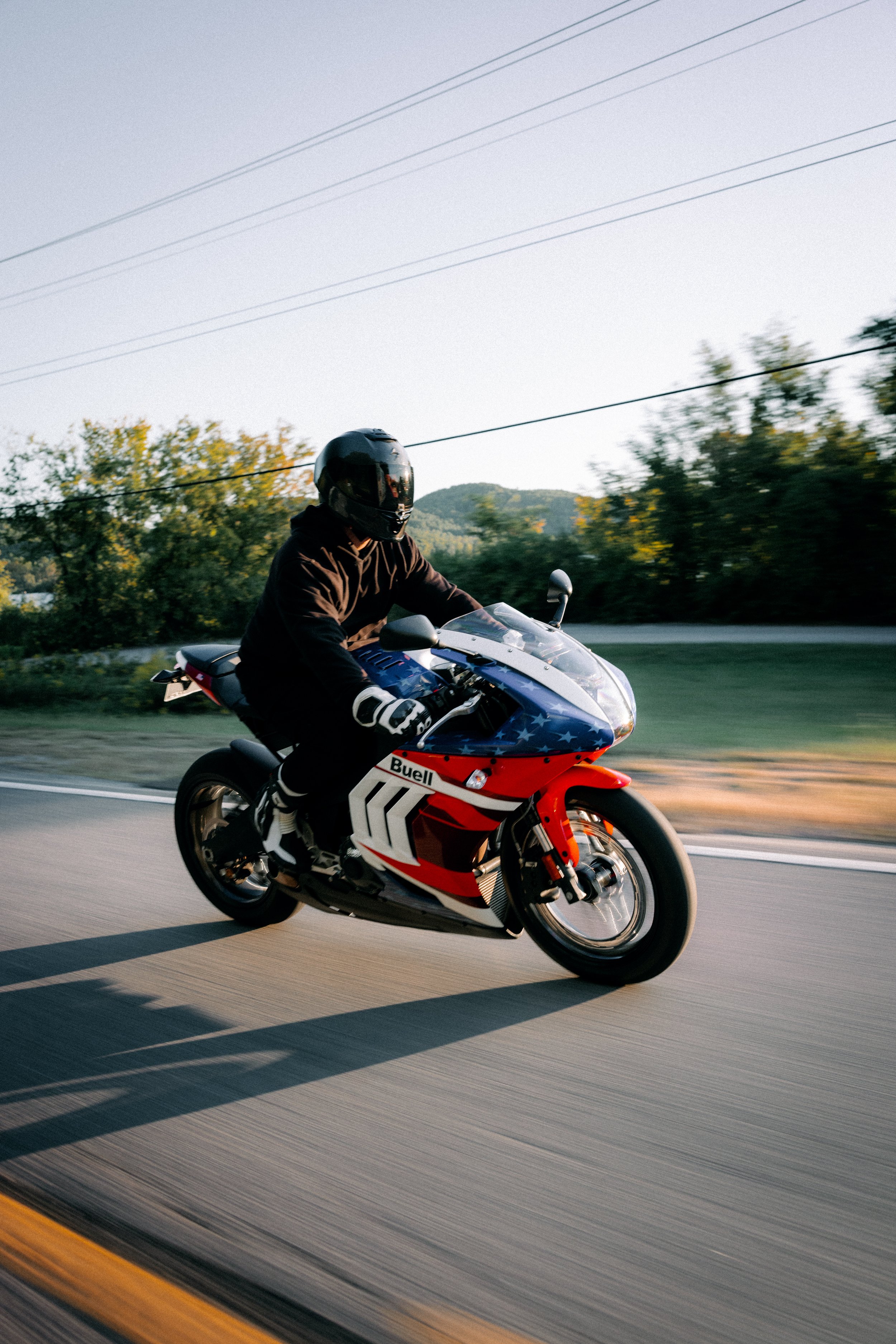

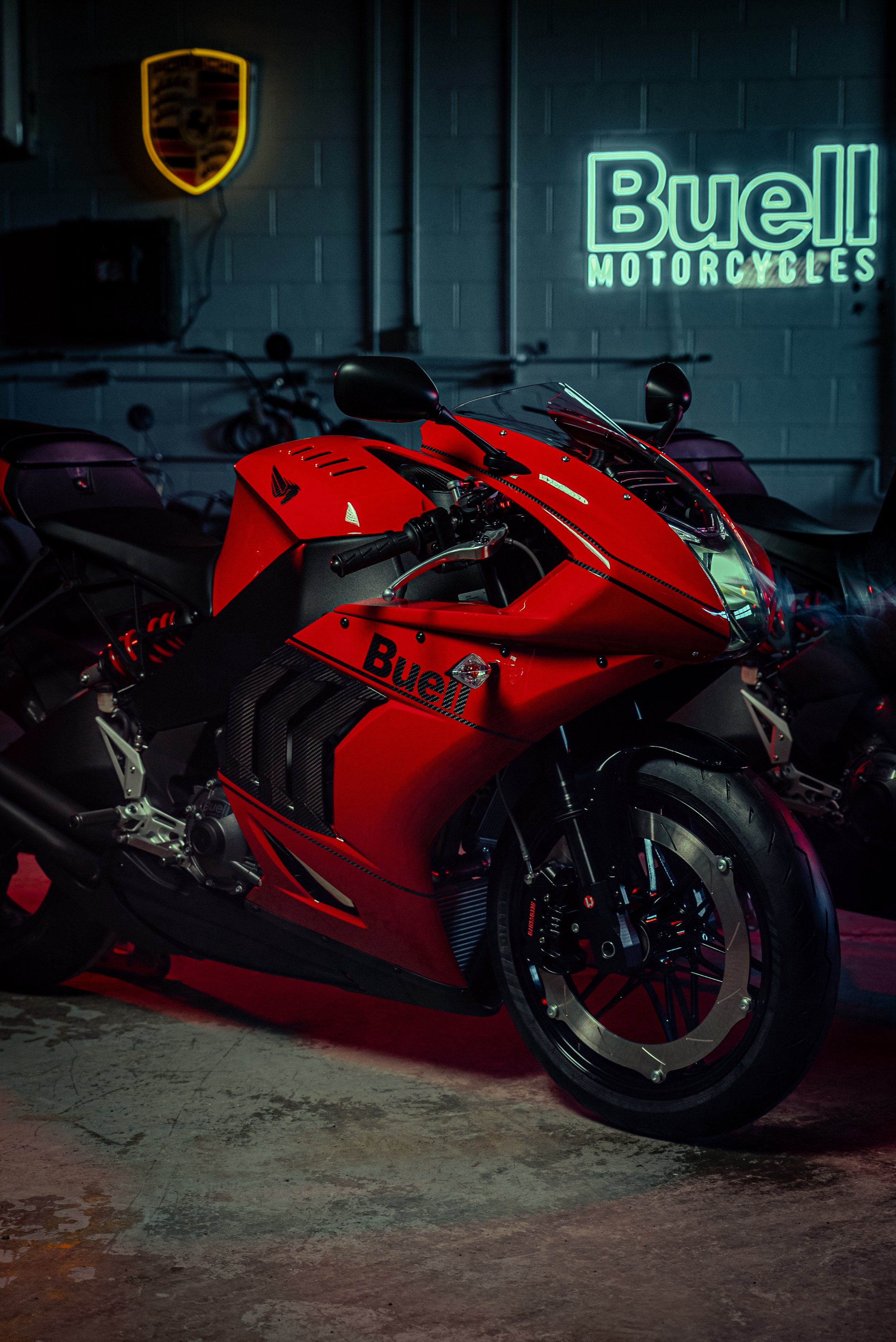

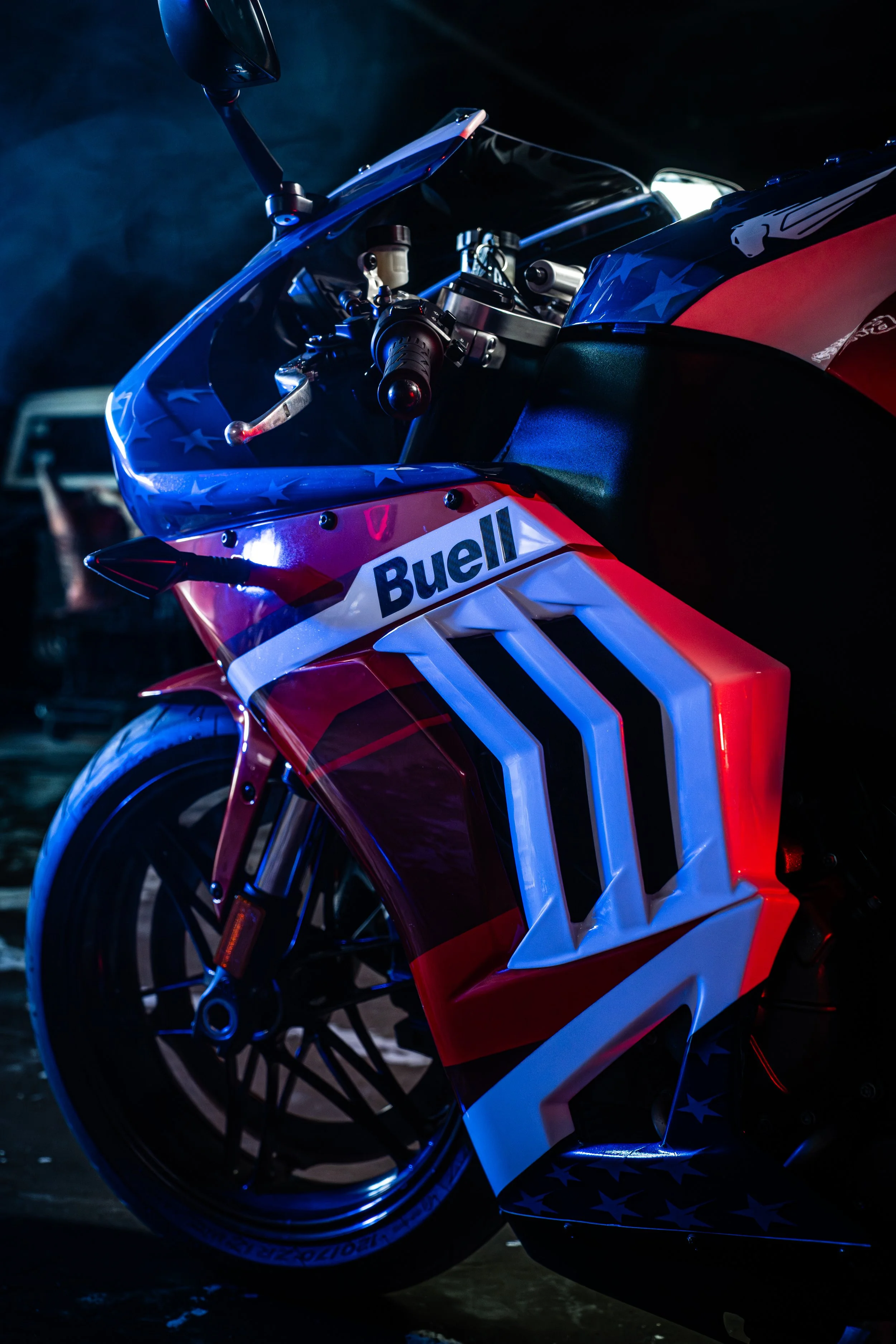

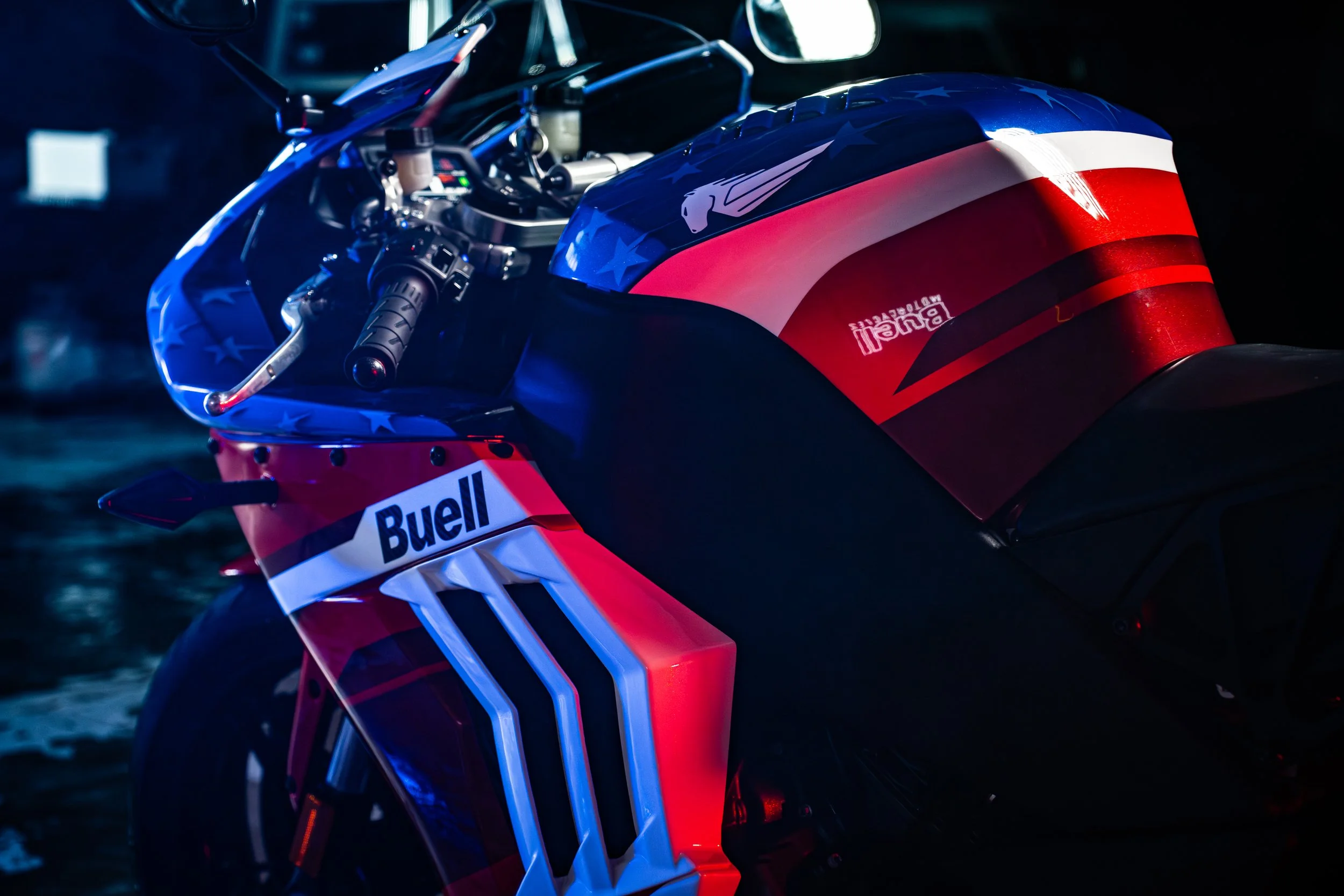

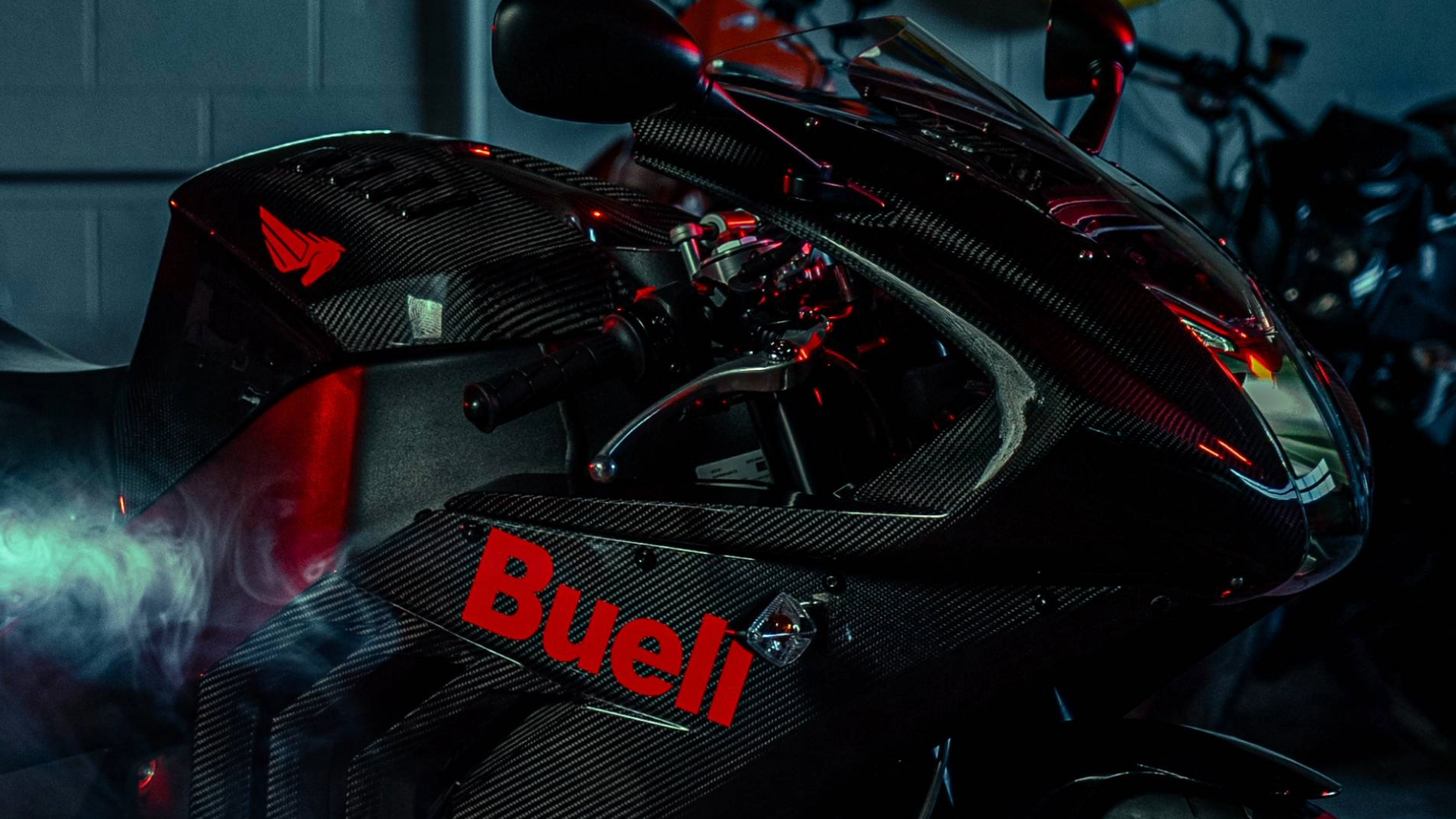

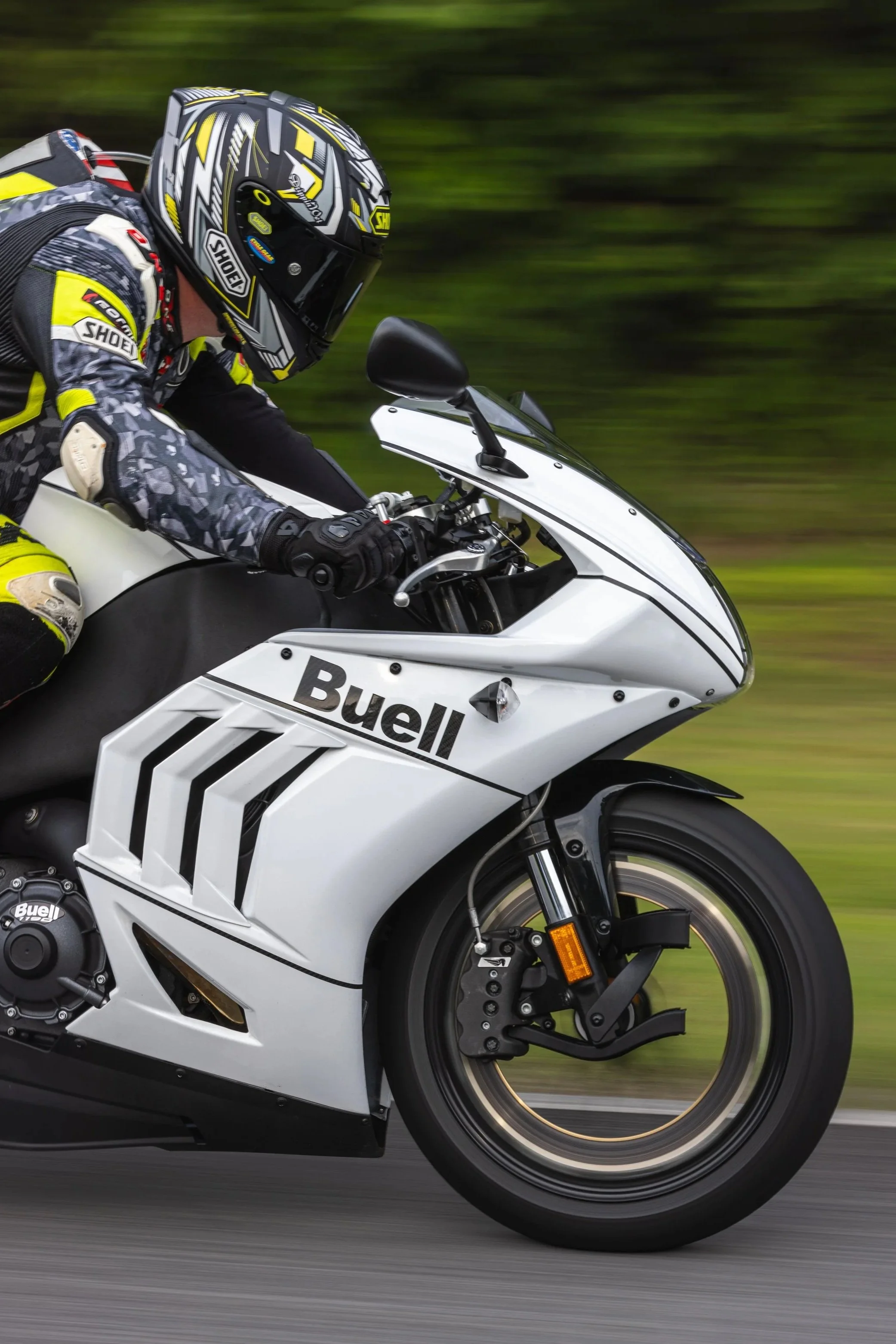

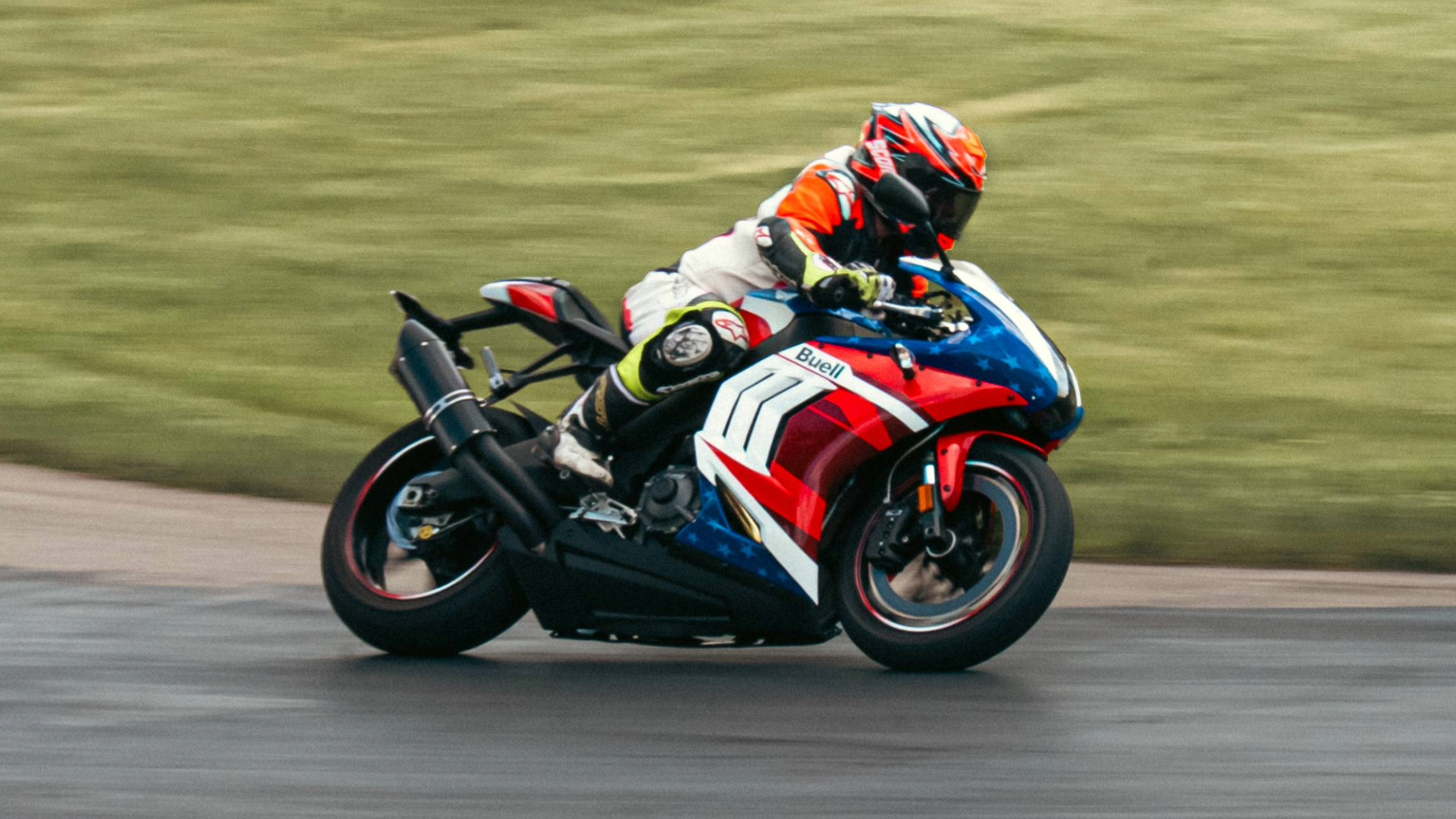

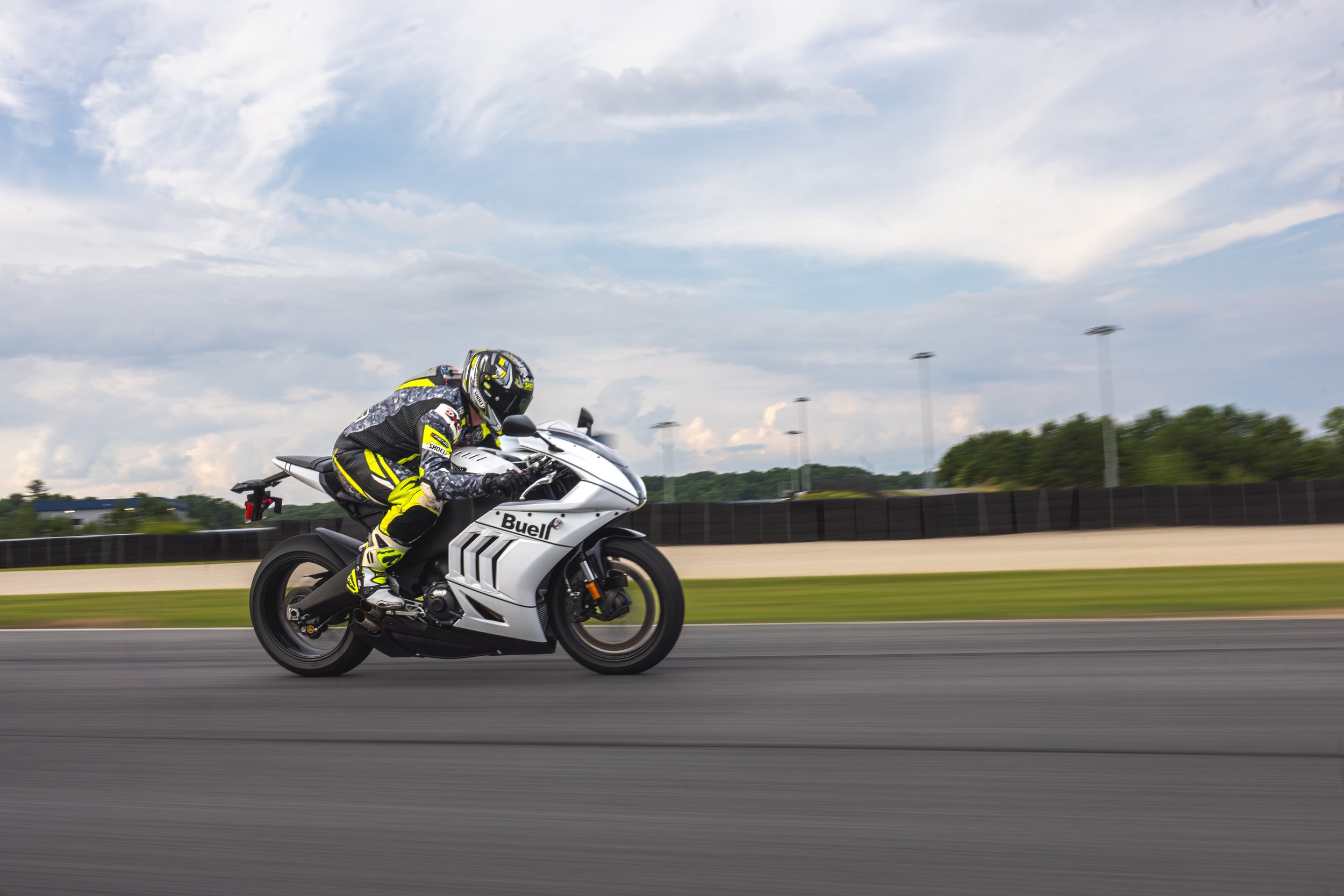

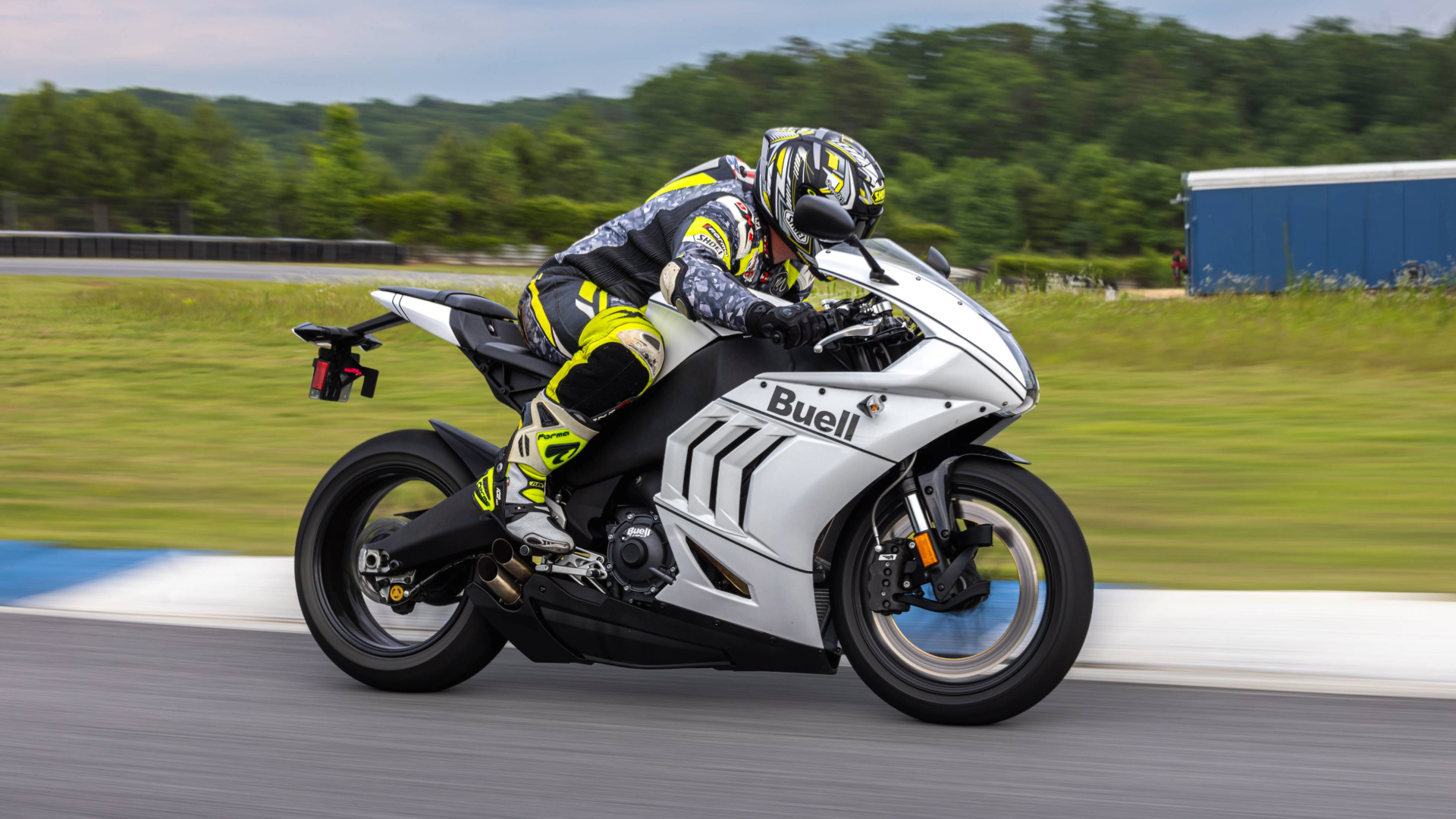

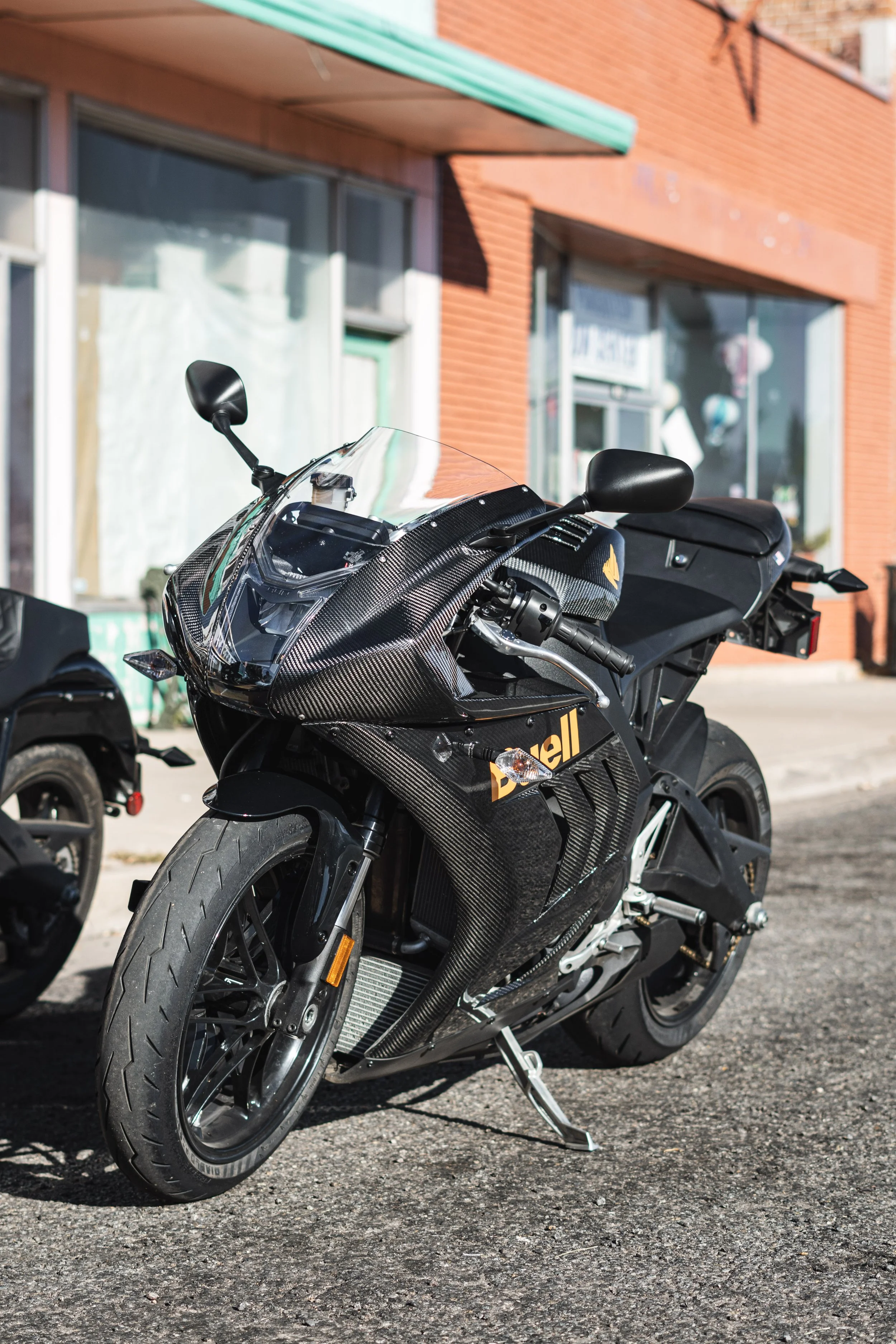

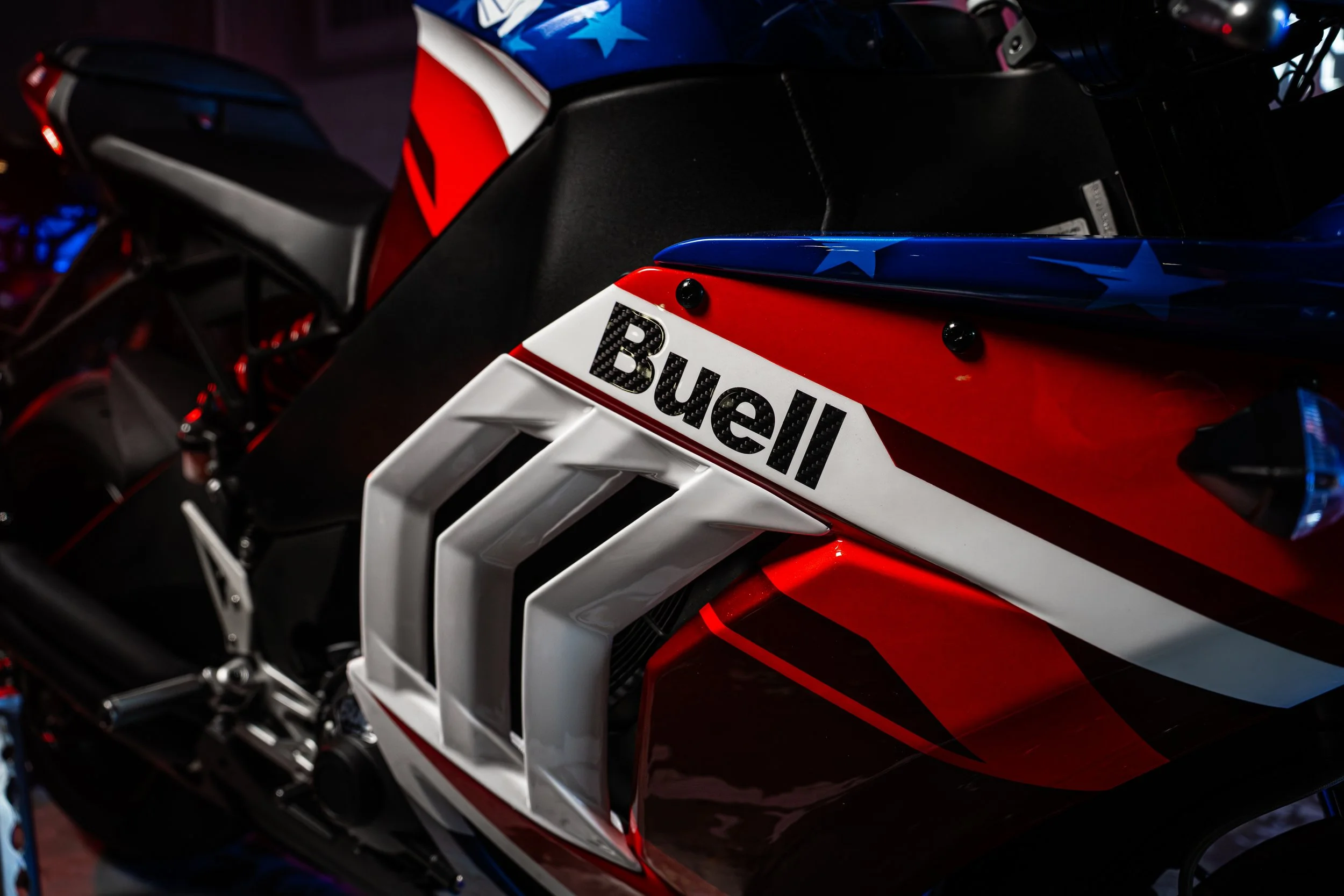

More than three decades of racing, engineering, and manufacturing experience goes into every motorcycle we make. You won’t be disappointed upon setting eyes on our newest creation: The 2023 Buell Hammerhead 1190. It has been built from start-to-finish with pride, joy and a relentless passion to bring you another world-class sport bike from the heart of America.

​

The new Hammerhead designed in collaboration with famous Buell designer, Ryan Hahn.

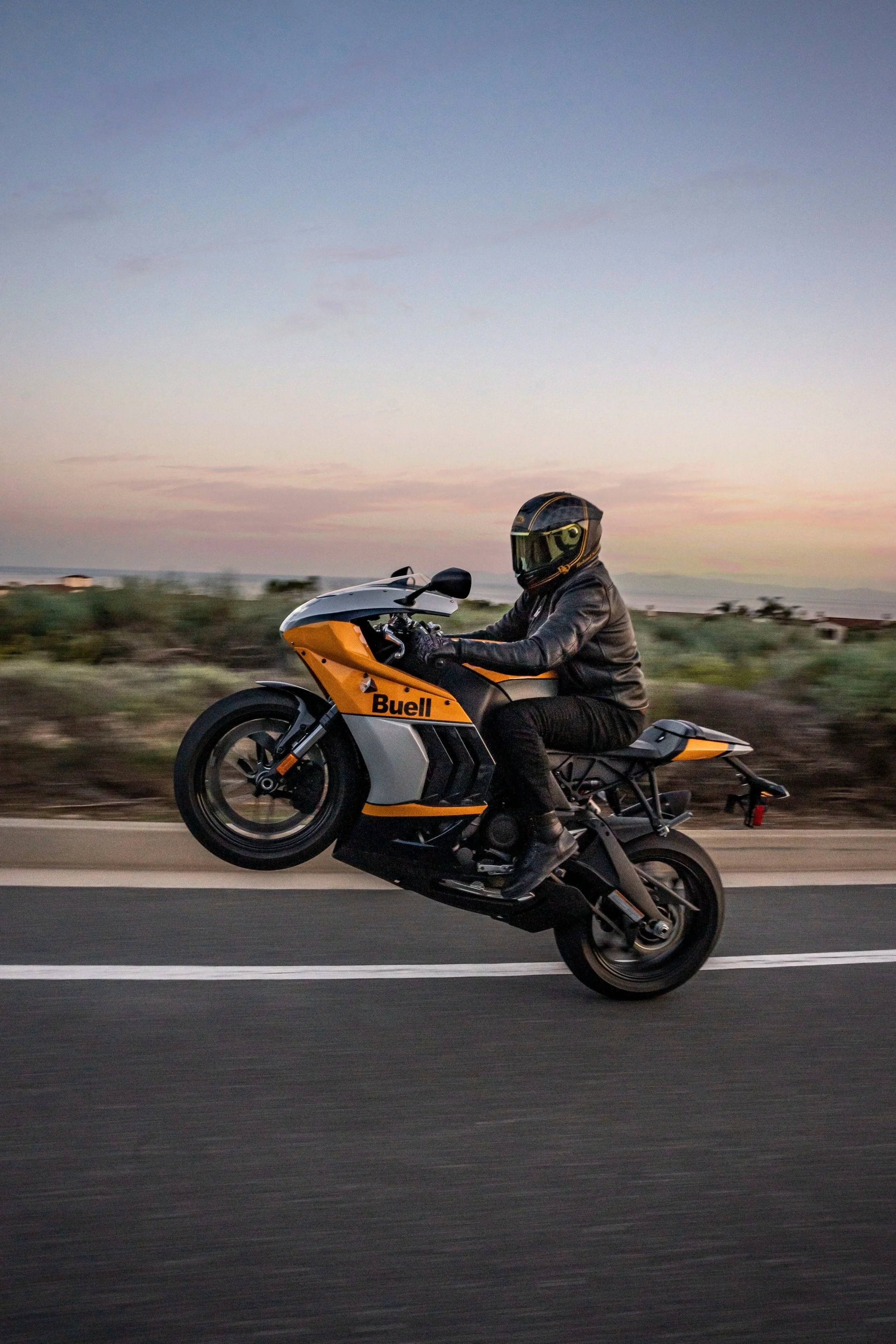

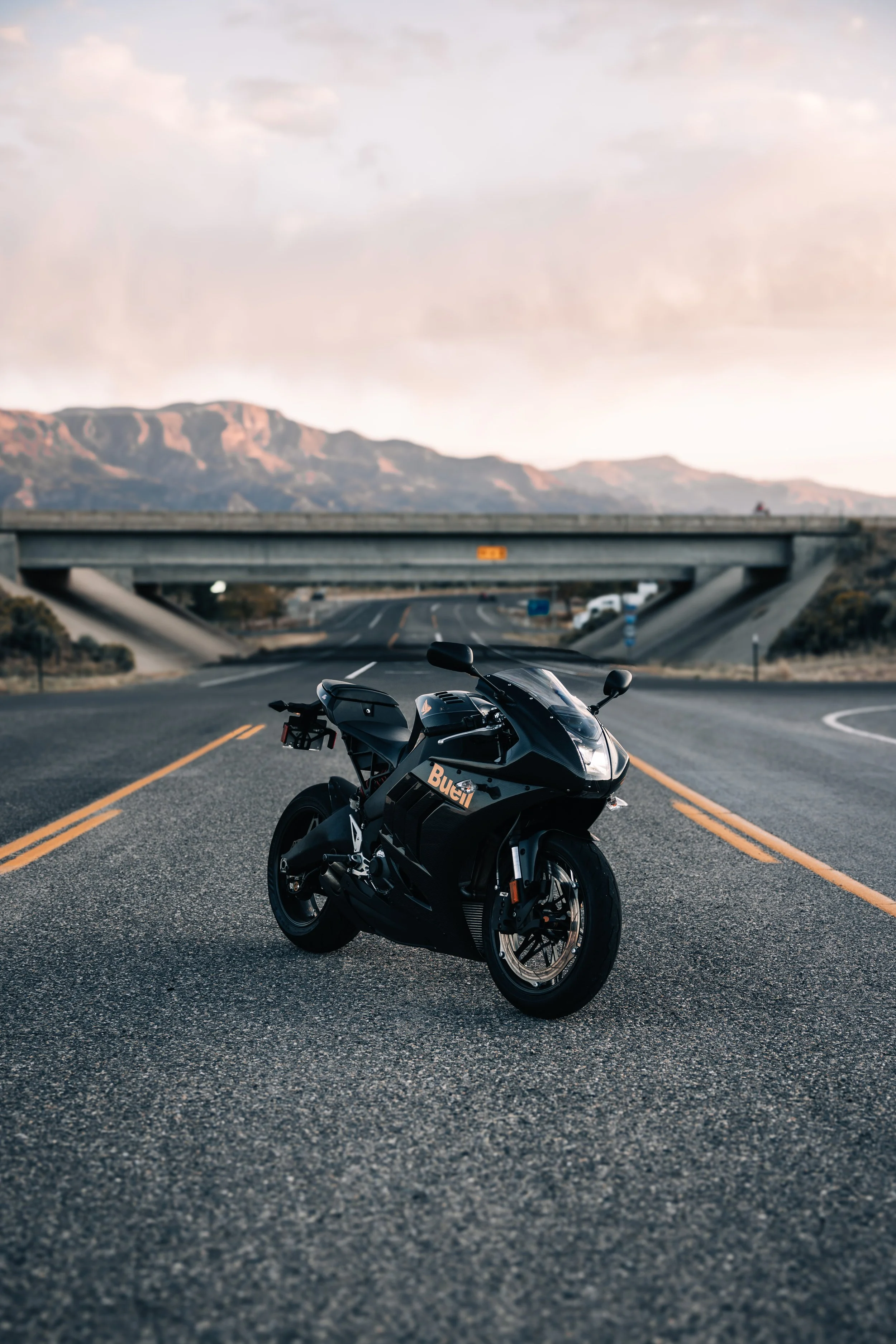

Buell Hammerhead.jpg

Thank you. You will be contacted by our sales team within the next 24 hours.

Thank you. You will be contacted by our sales team within the next 24 hours.

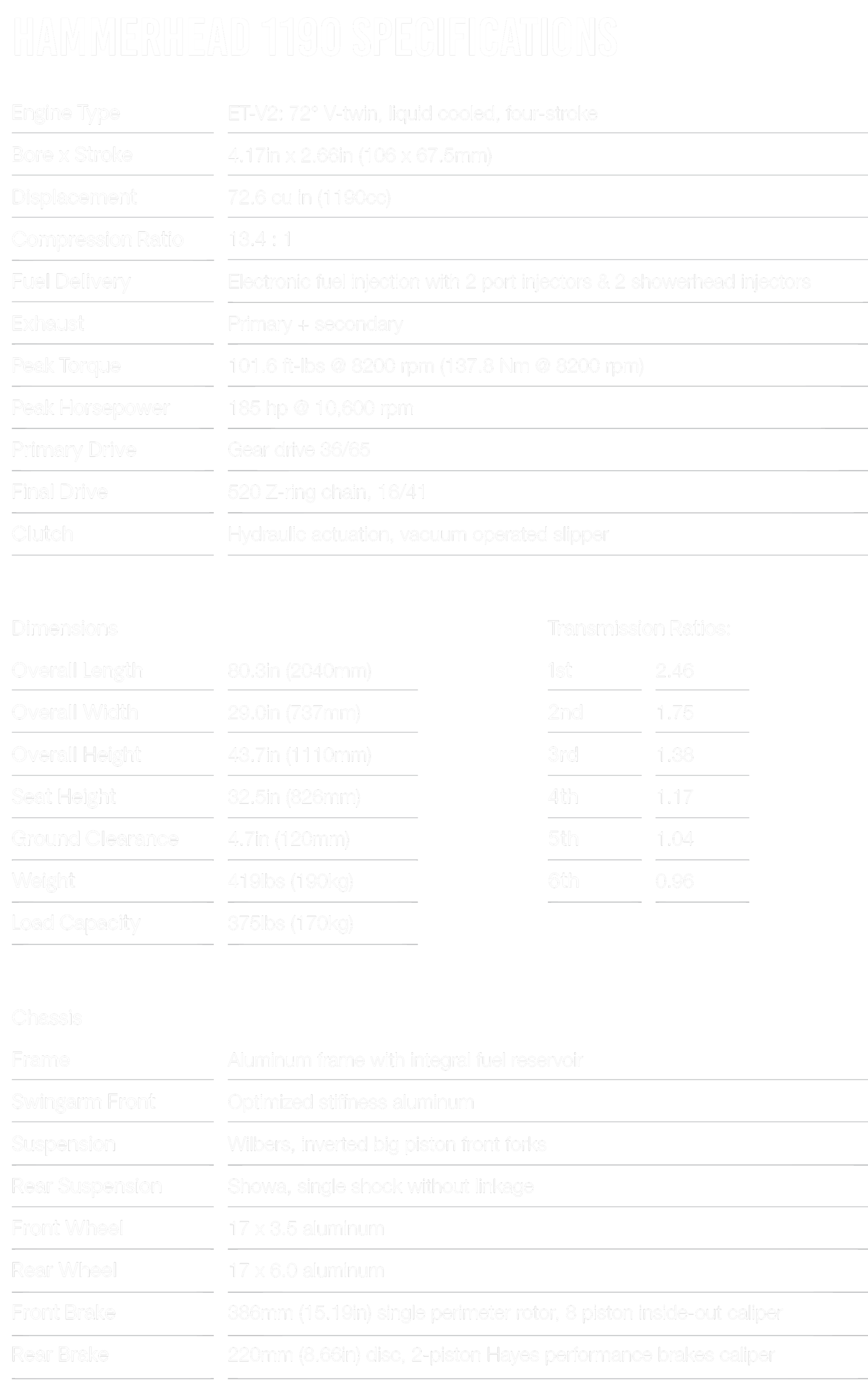

2023 BUELL HAMMERHEAD 1190 SPECIFICATIONS

Engine Type
Bore x Stroke
Displacement
Compression Ratio
Fuel Delivery


Exhaust
Peak Torque

Peak Horsepower



Drivetrain
Primary Drive
Final Drive
Clutch


Transmission Ratios:


​

​

​

​

​​

Dimensions
Overall Length
Overall Width
Overall Height
Seat Height
Ground Clearance
Weight (Wet, no fuel)
Load Capacity

​

Chassis
Frame
Swingarm
Front Suspension
Rear Suspension
Front Wheel
Rear Wheel
Front Brake


Rear Brake

​

ET-V2: 72° V-Twin, Liquid Cooled, Four-stroke
4.17 in. x 2.66in. (106 x 67.5 mm)
72.6 cu in. (1190cc)
13.4 : 1
Electronic Fuel injection with

2 port injectors & 2 showerhead injectors
Primary + Secondary
101.6 ft-lbs. @ 8200 rpm (137.8 Nm @ 8200 rpm)
185 hp @ 10,600 rpm




Gear Drive 36/65
520 Z-ring chain, 16/41
Hydraulic actuation, vacuum operated slipper

1st             2.46
2nd           1.75
3rd            1.38
4th            1.17
5th            1.04
6th            0.96

​

​

80.3in. (2040mm.)
29.0in. (737mm)
43.7in. (1110mm)
32.5in. (826mm)
4.7in. (120mm)

​419 lbs (190kg)

375 lbs (170kg)





Aluminum frame with integral fuel reservoir
Optimized stiffness aluminum
Showa, inverted big piston front forks

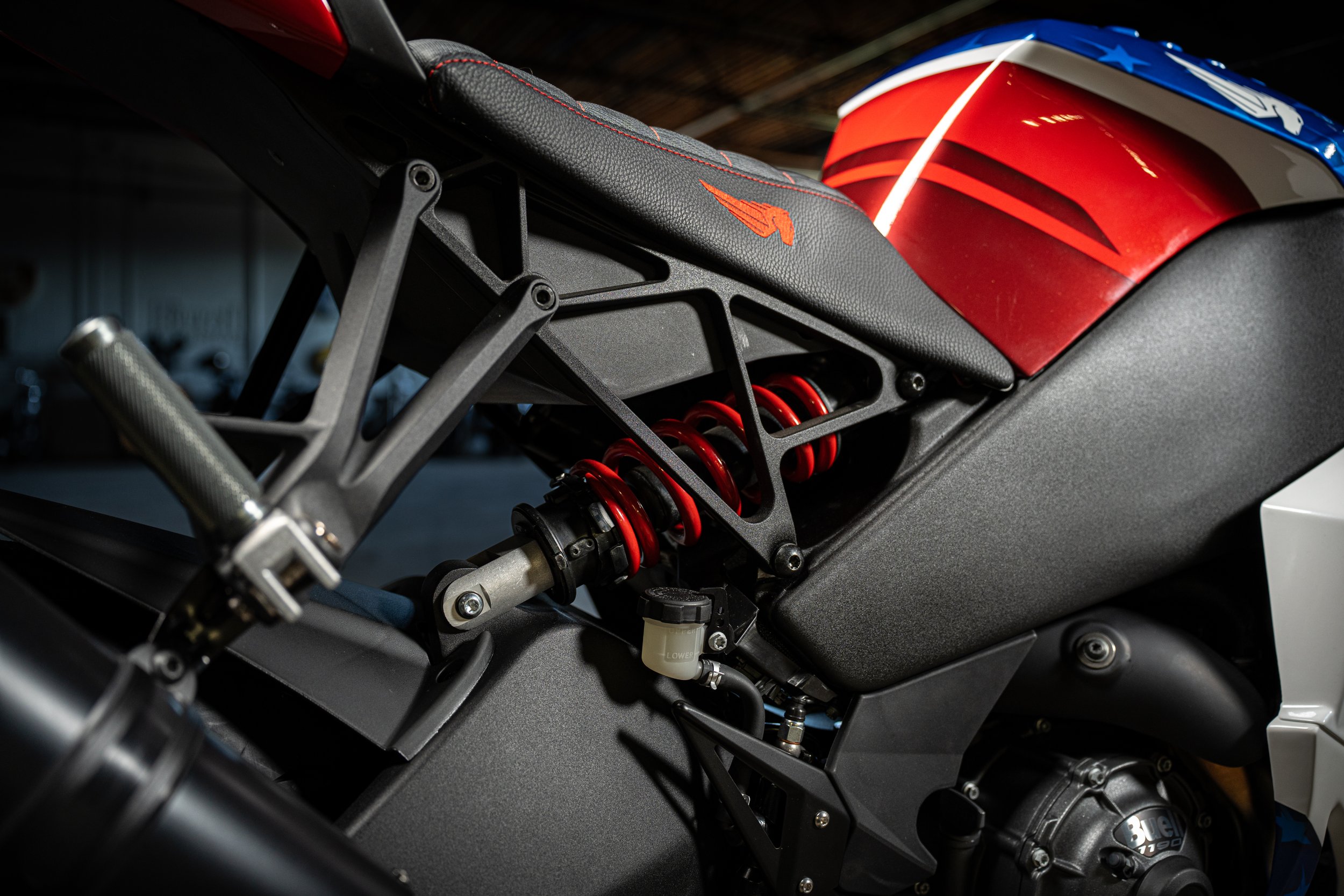

Showa, single shock without linkage
17 x 3.5 Aluminum
17 x 6.0 Aluminum

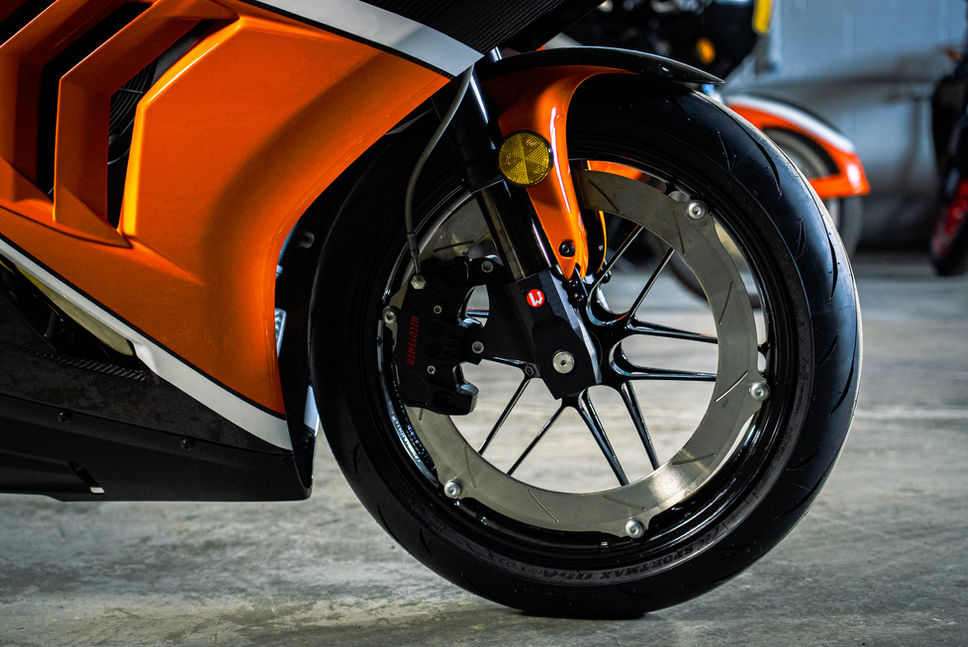

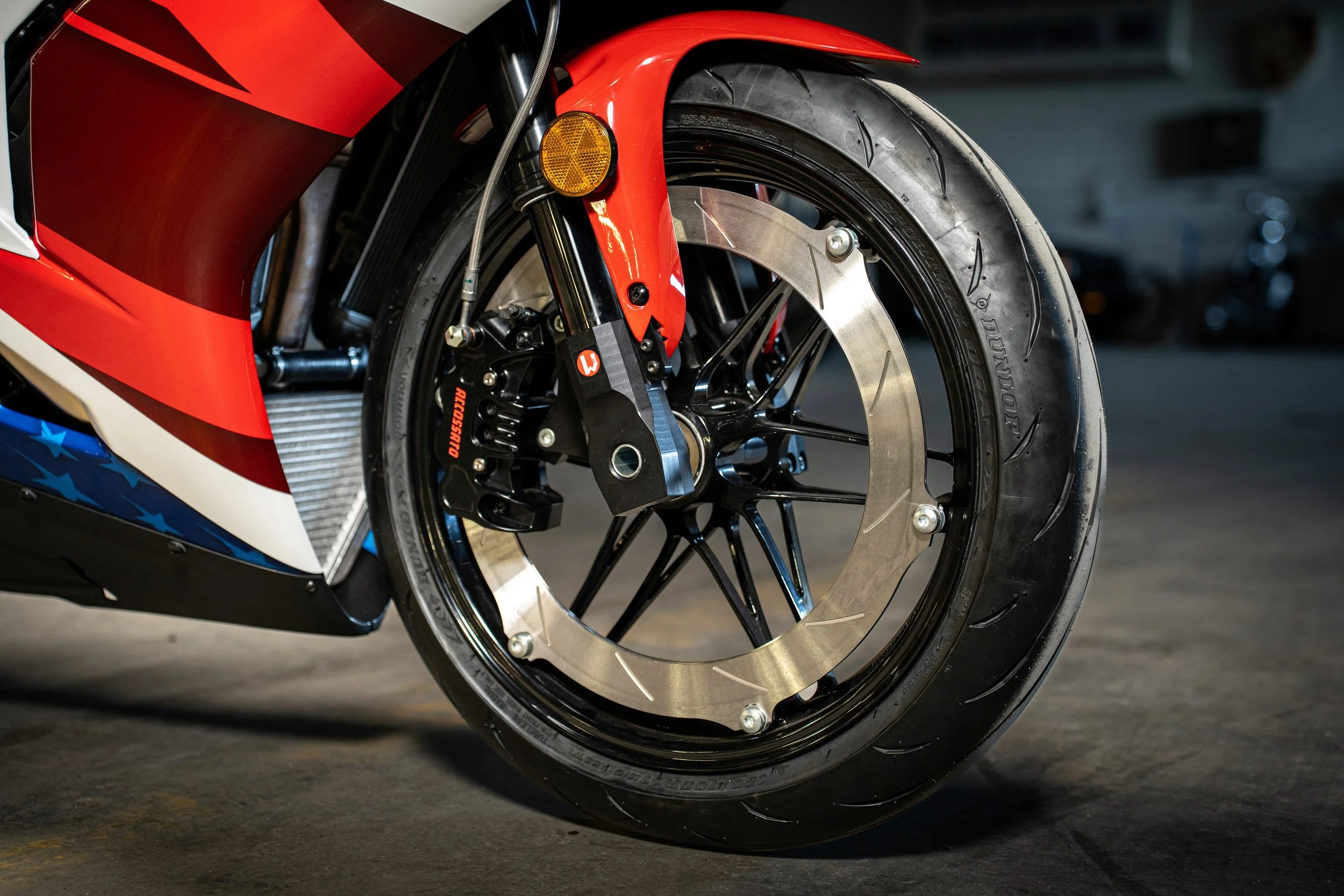

386mm (15.19in.) Single perimeter rotor, 8 piston inside-out caliper
220mm (8.66in.) Disc, 2-piston Hayes Performance Brakes Caliper
