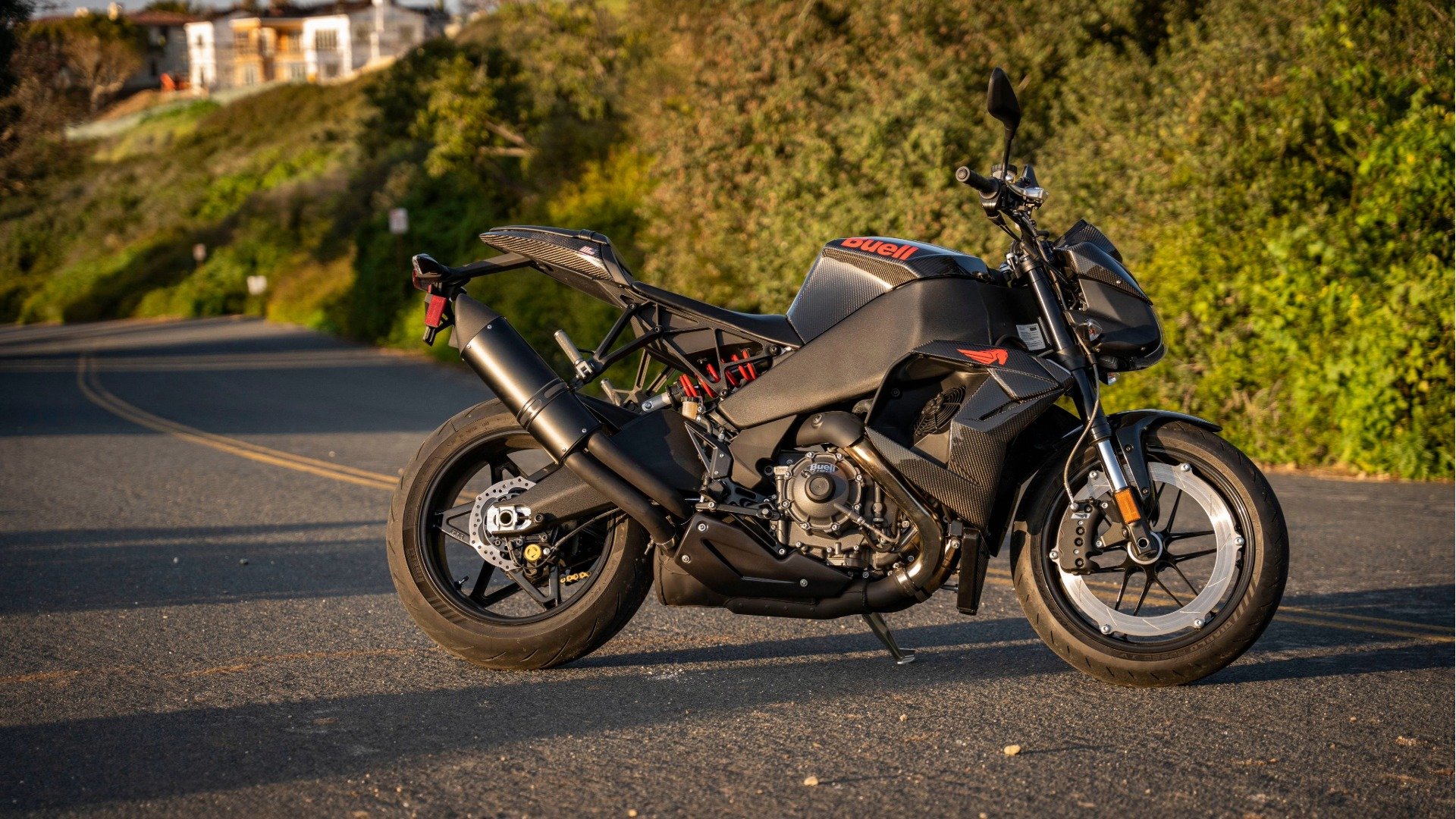

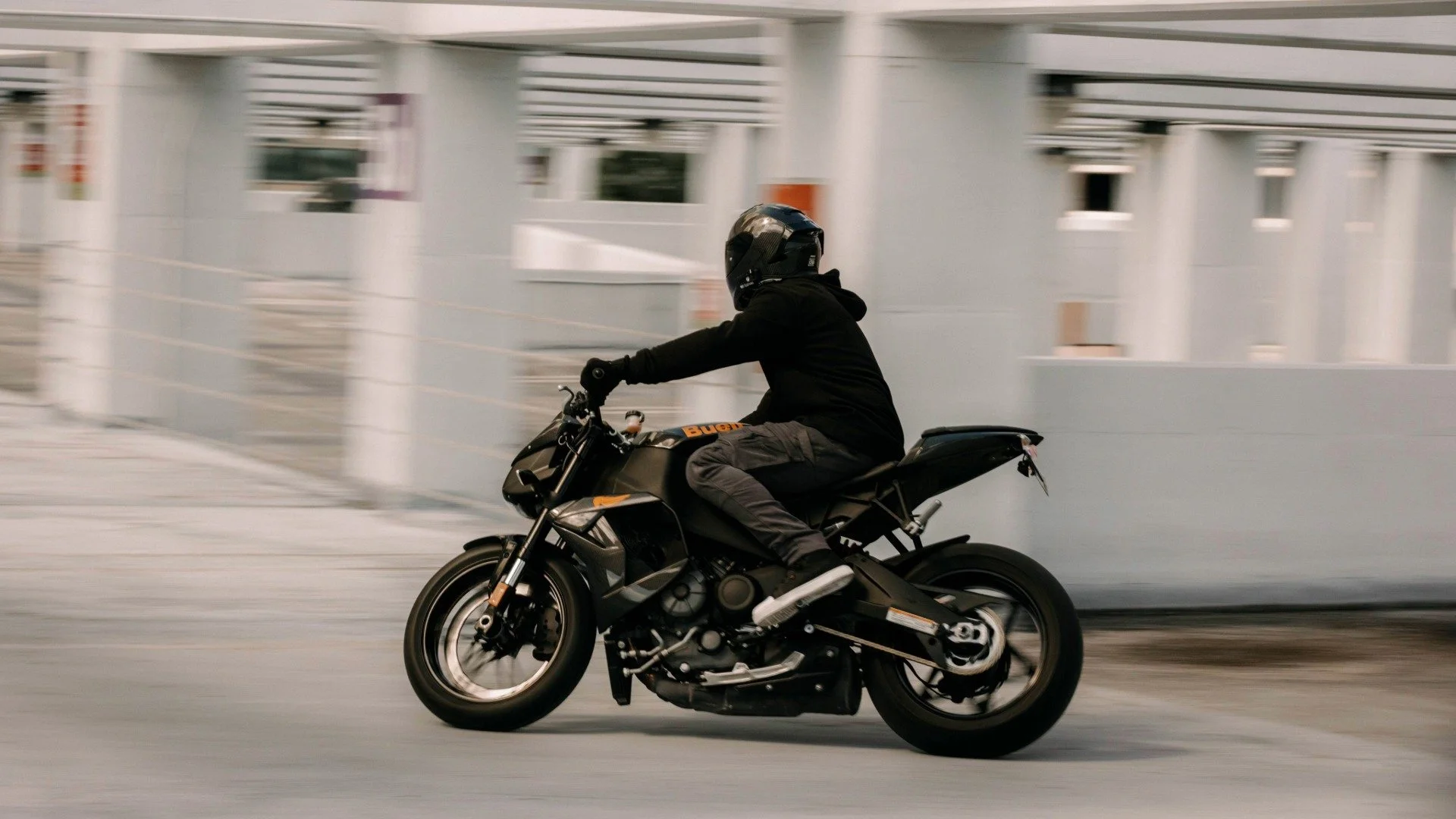

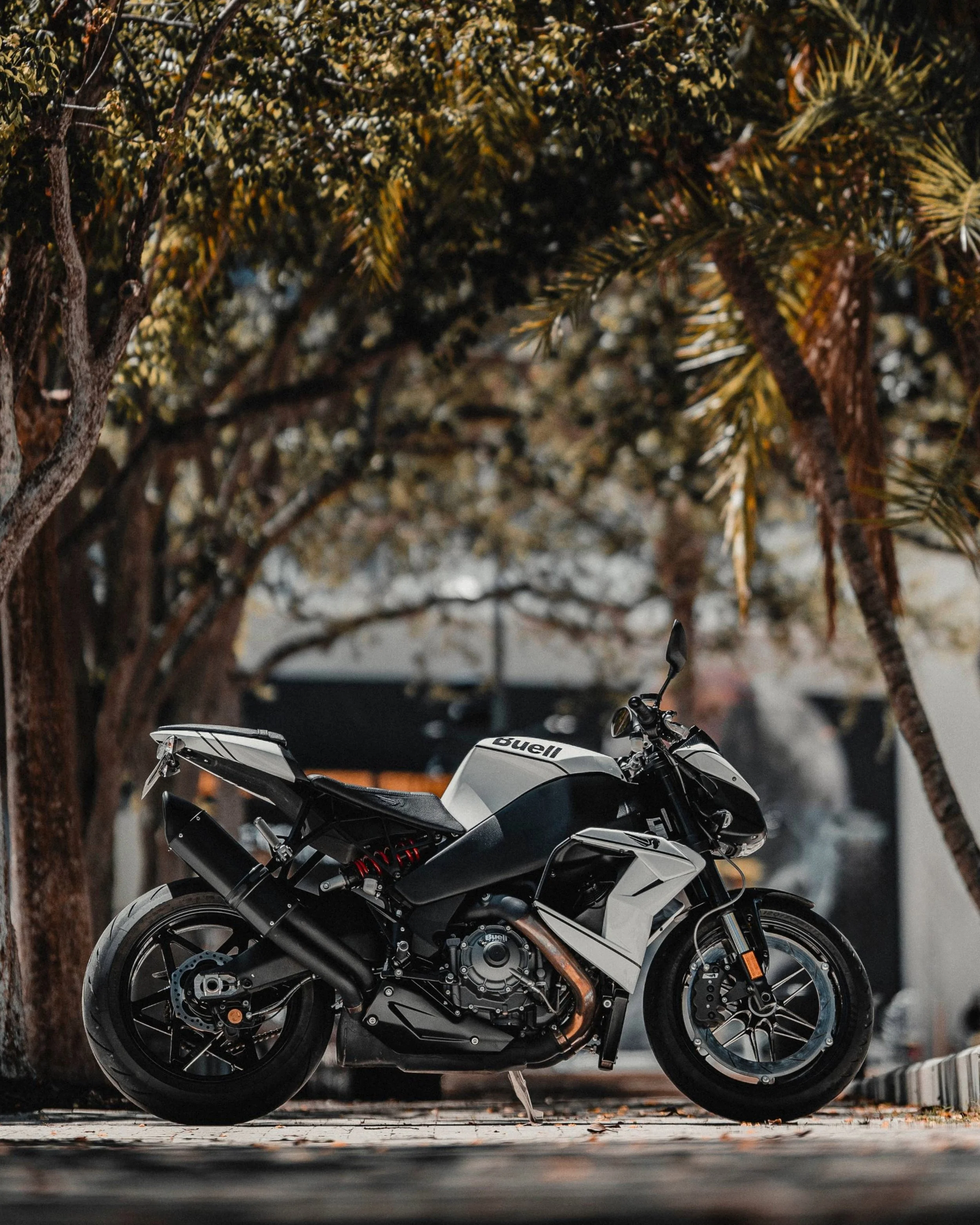

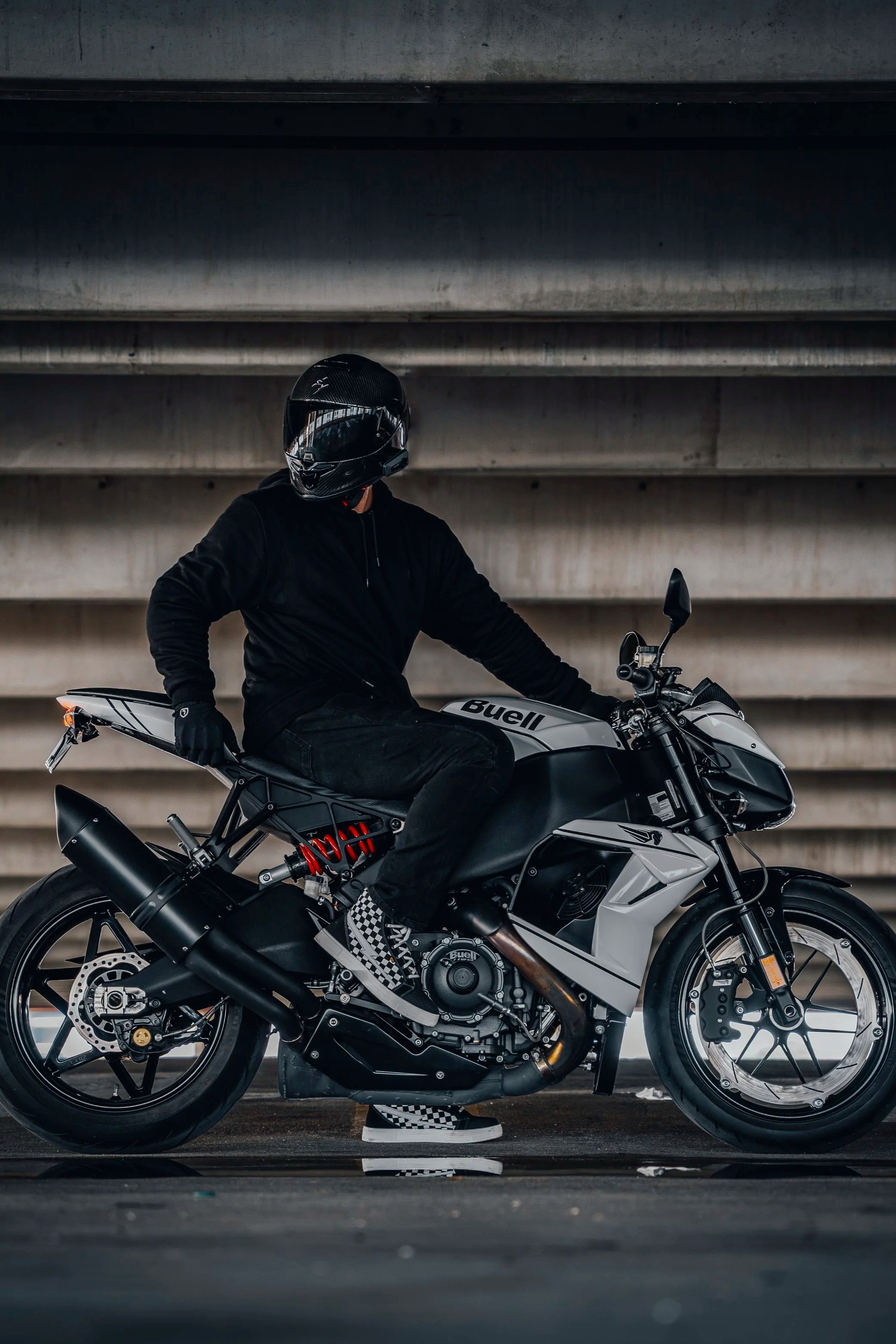

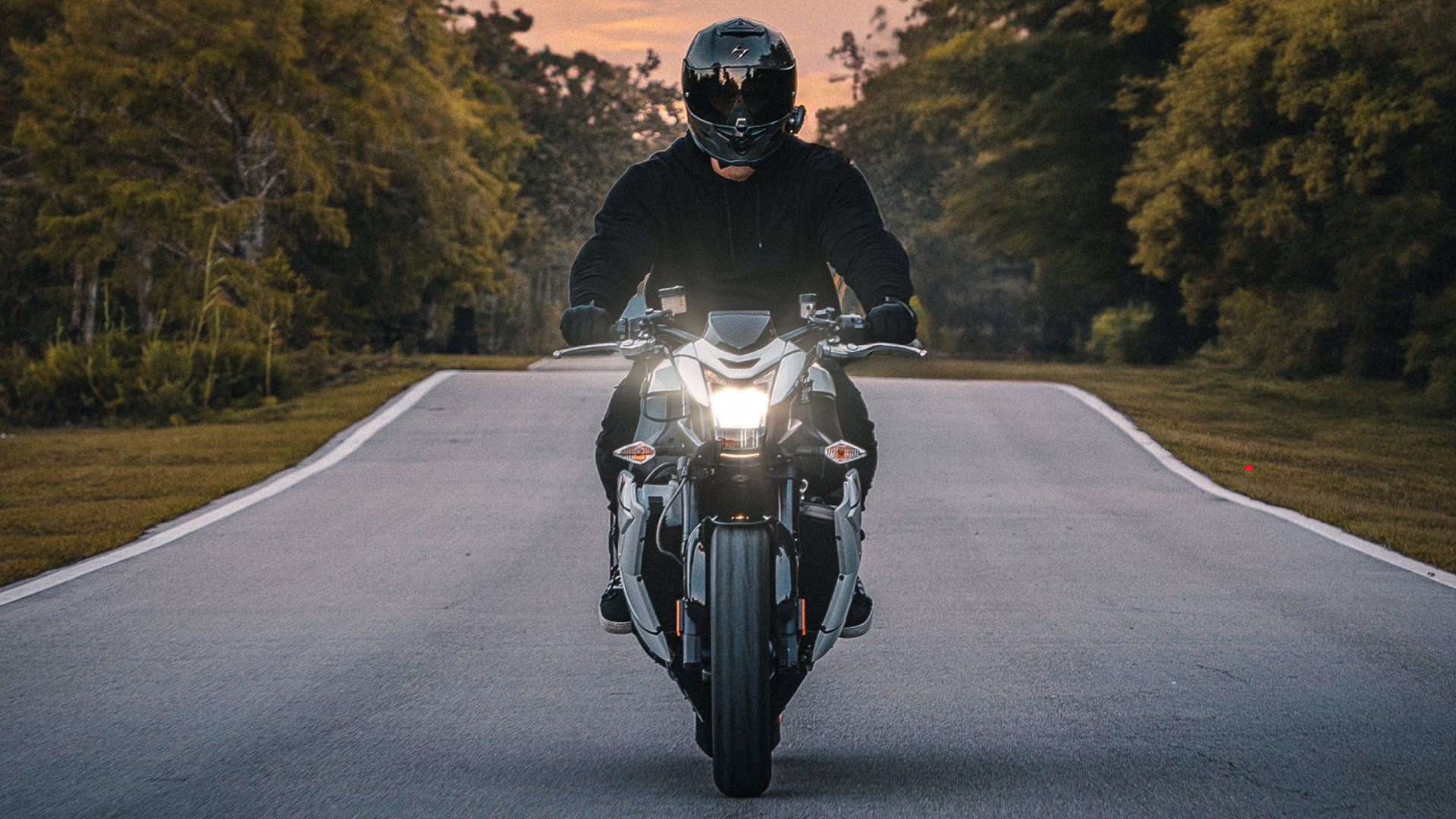

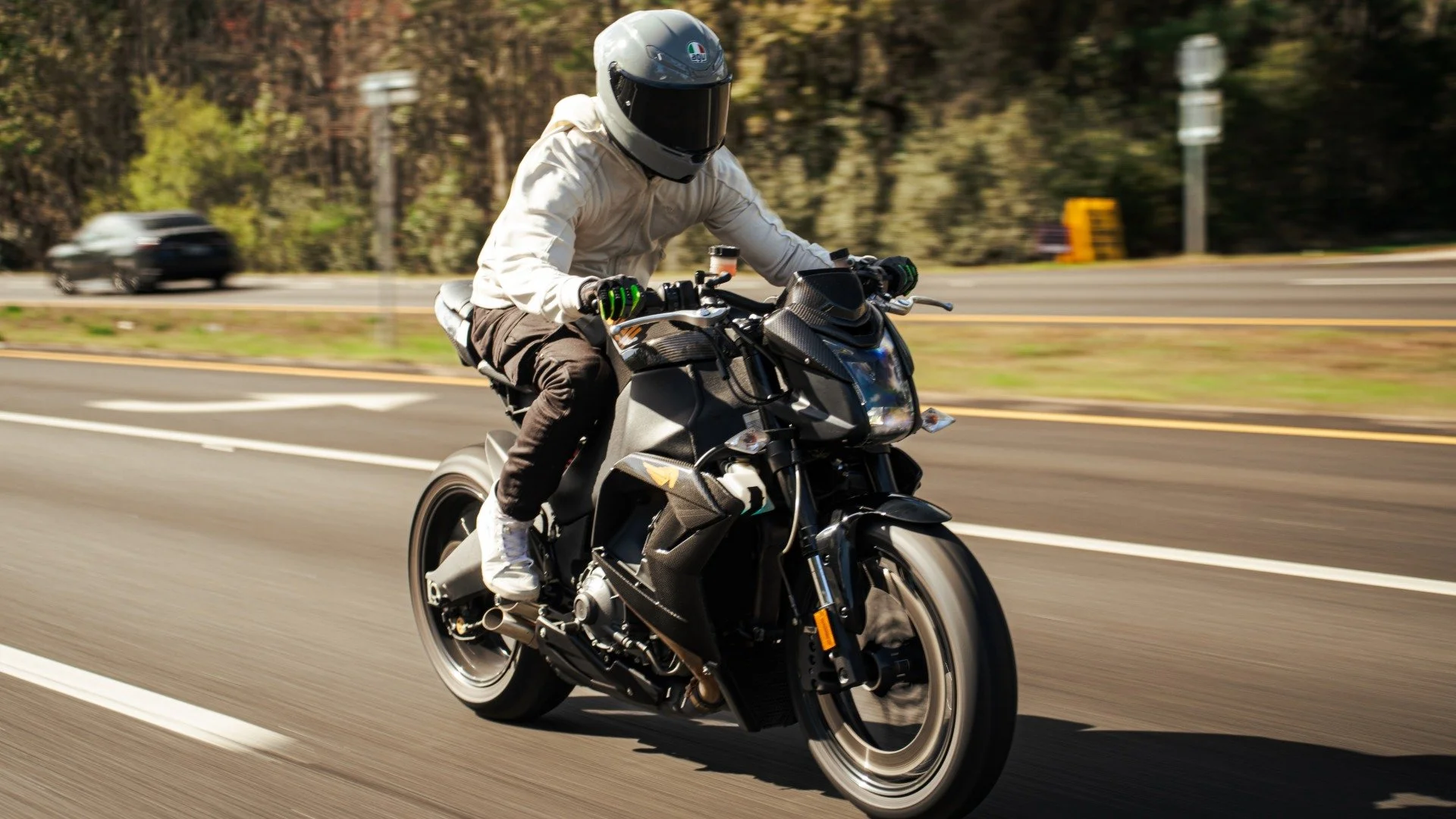

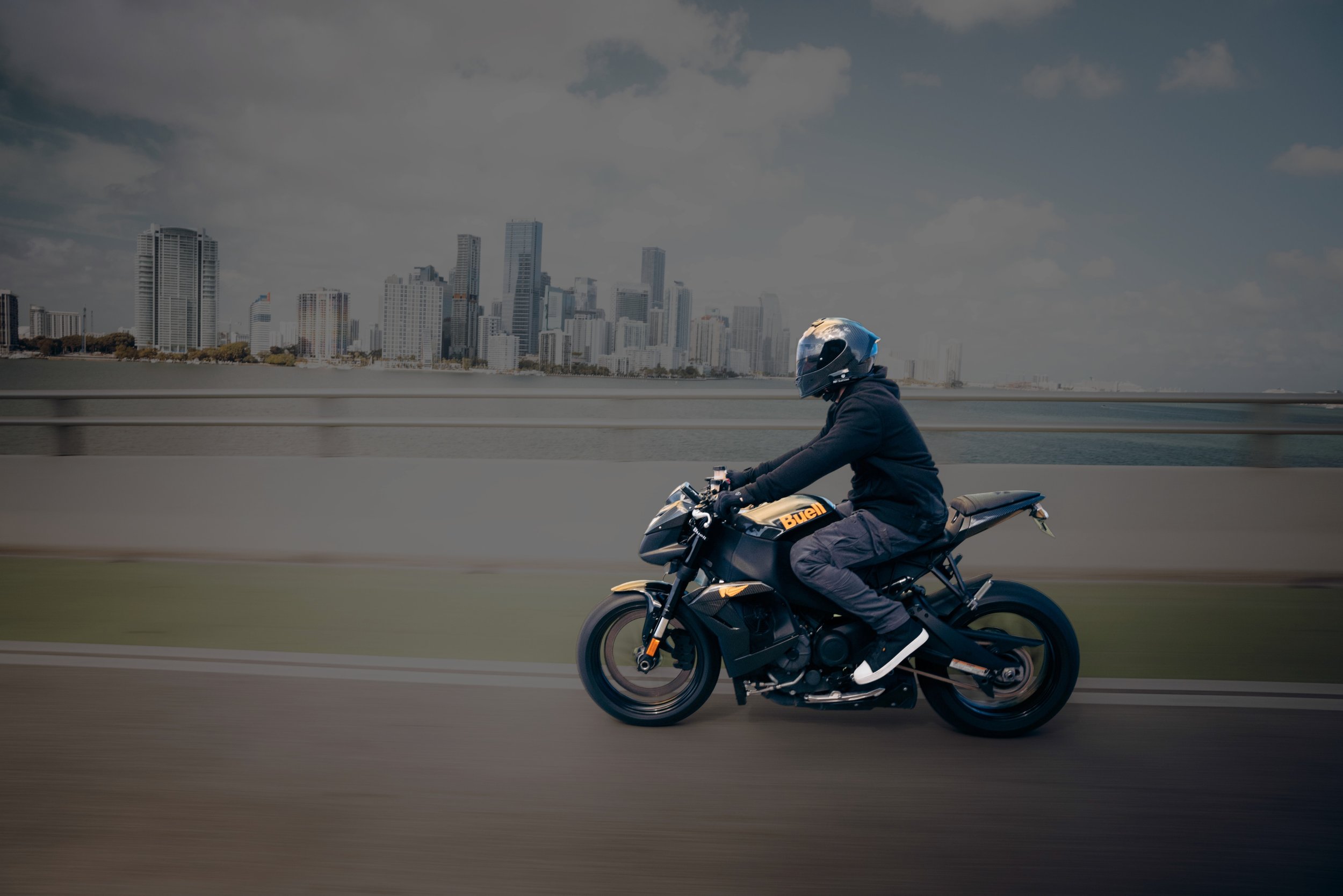

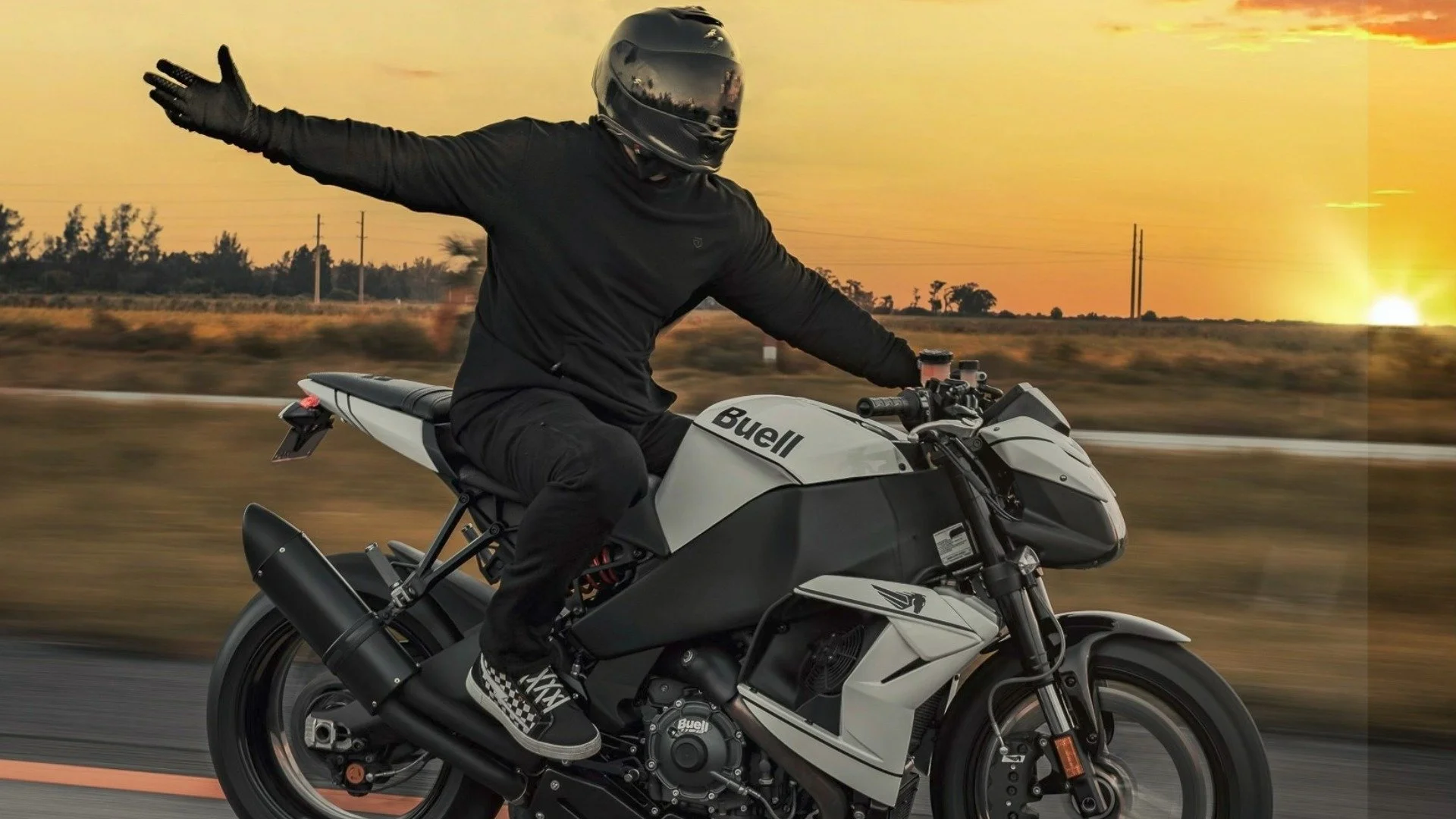

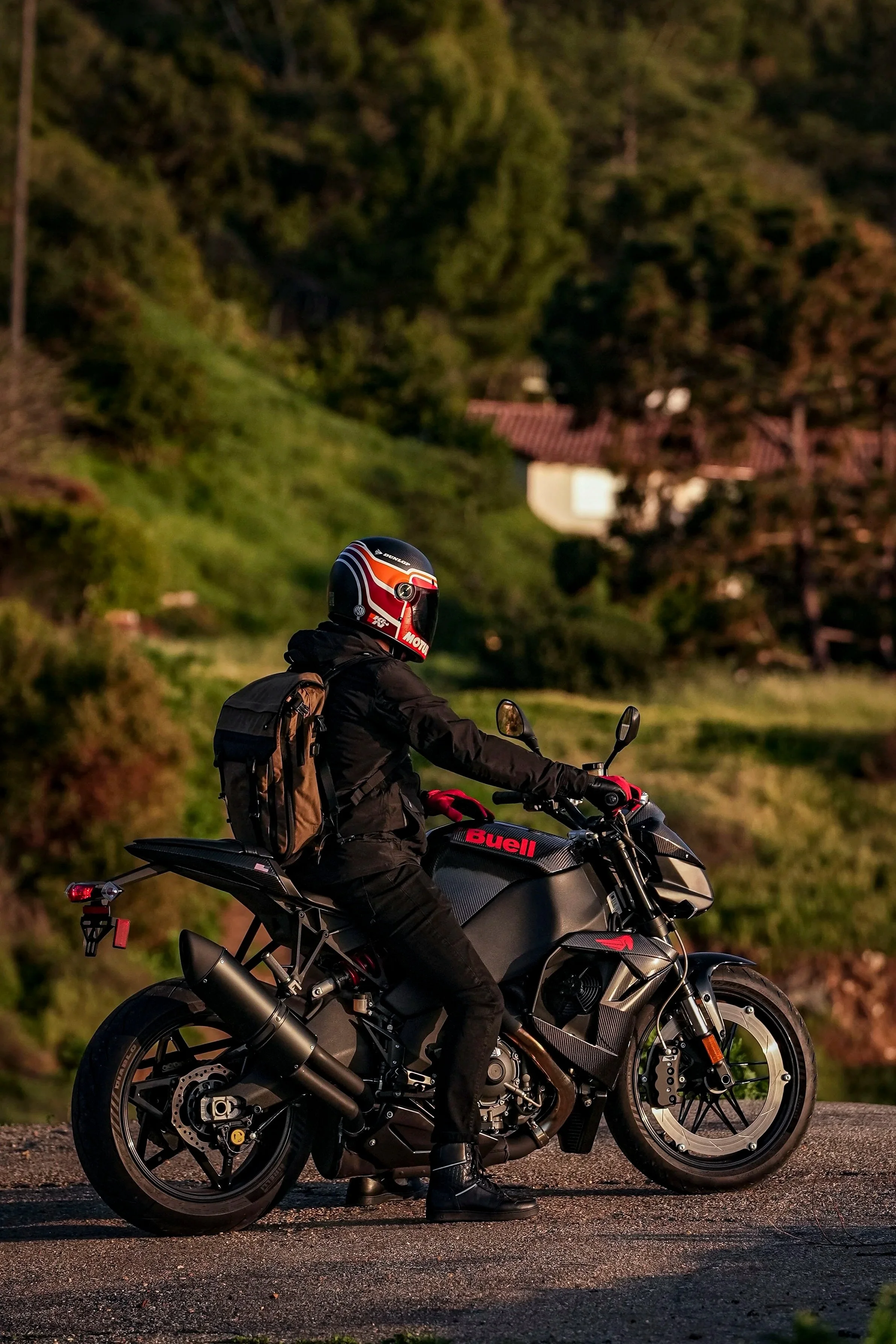

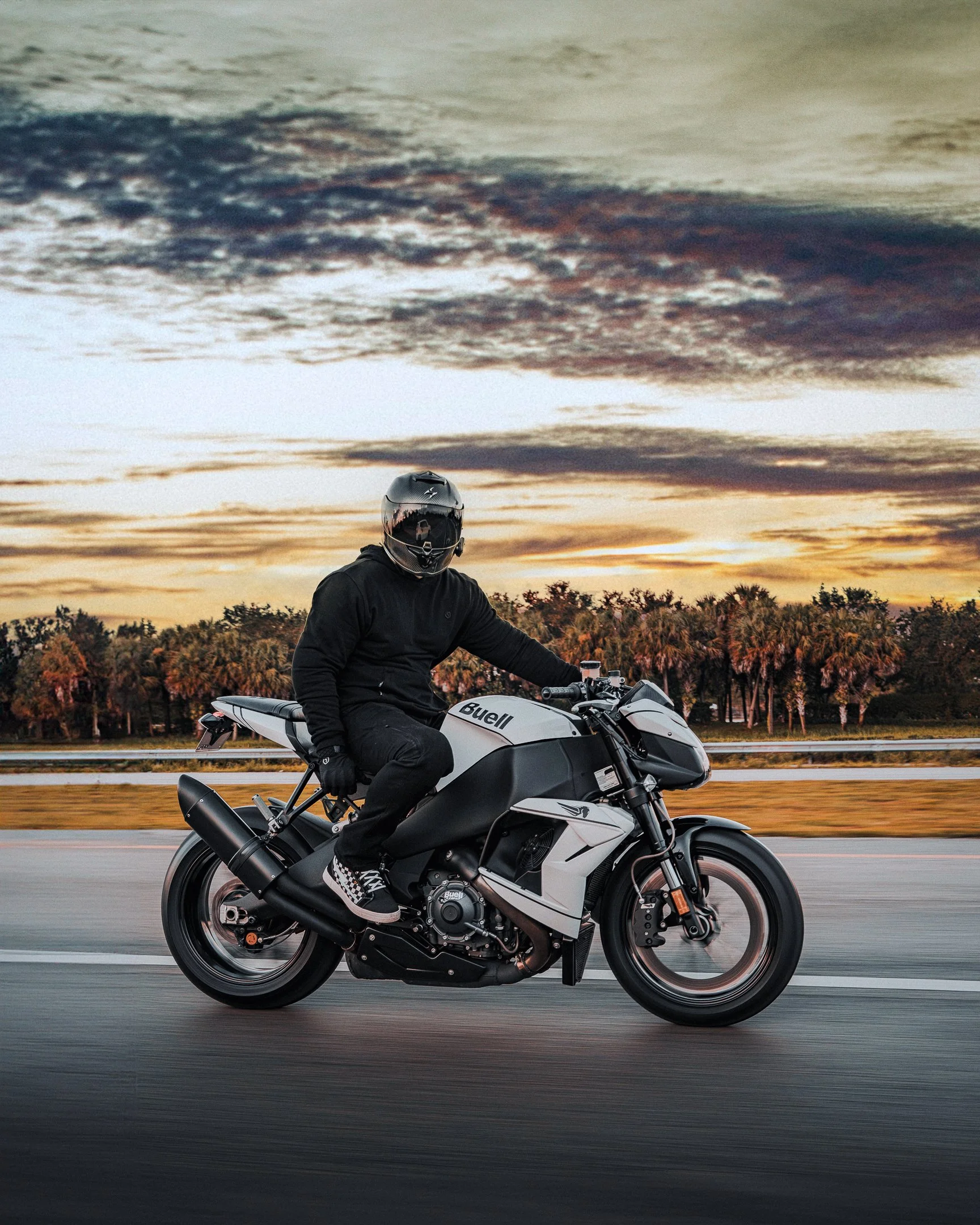

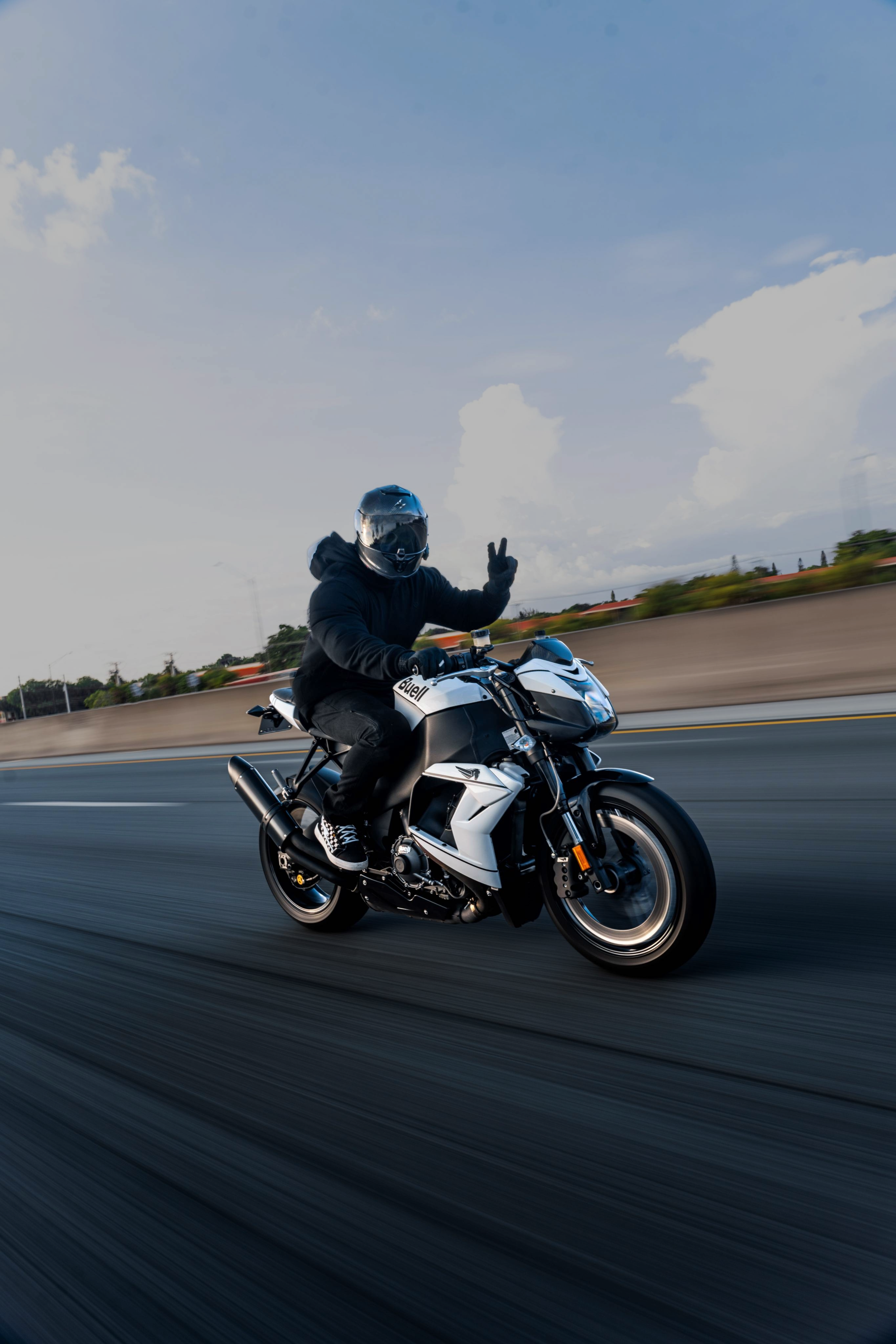

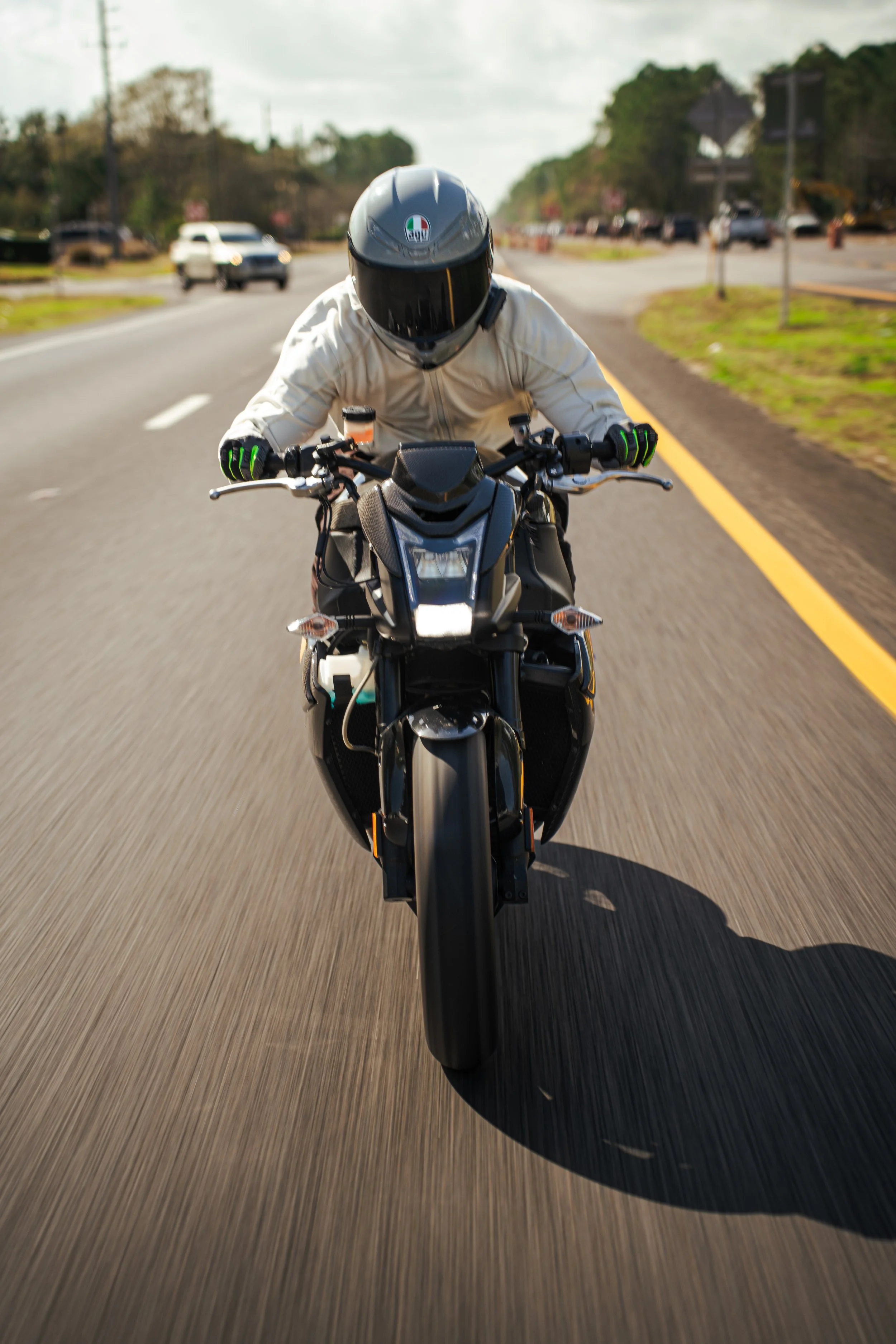

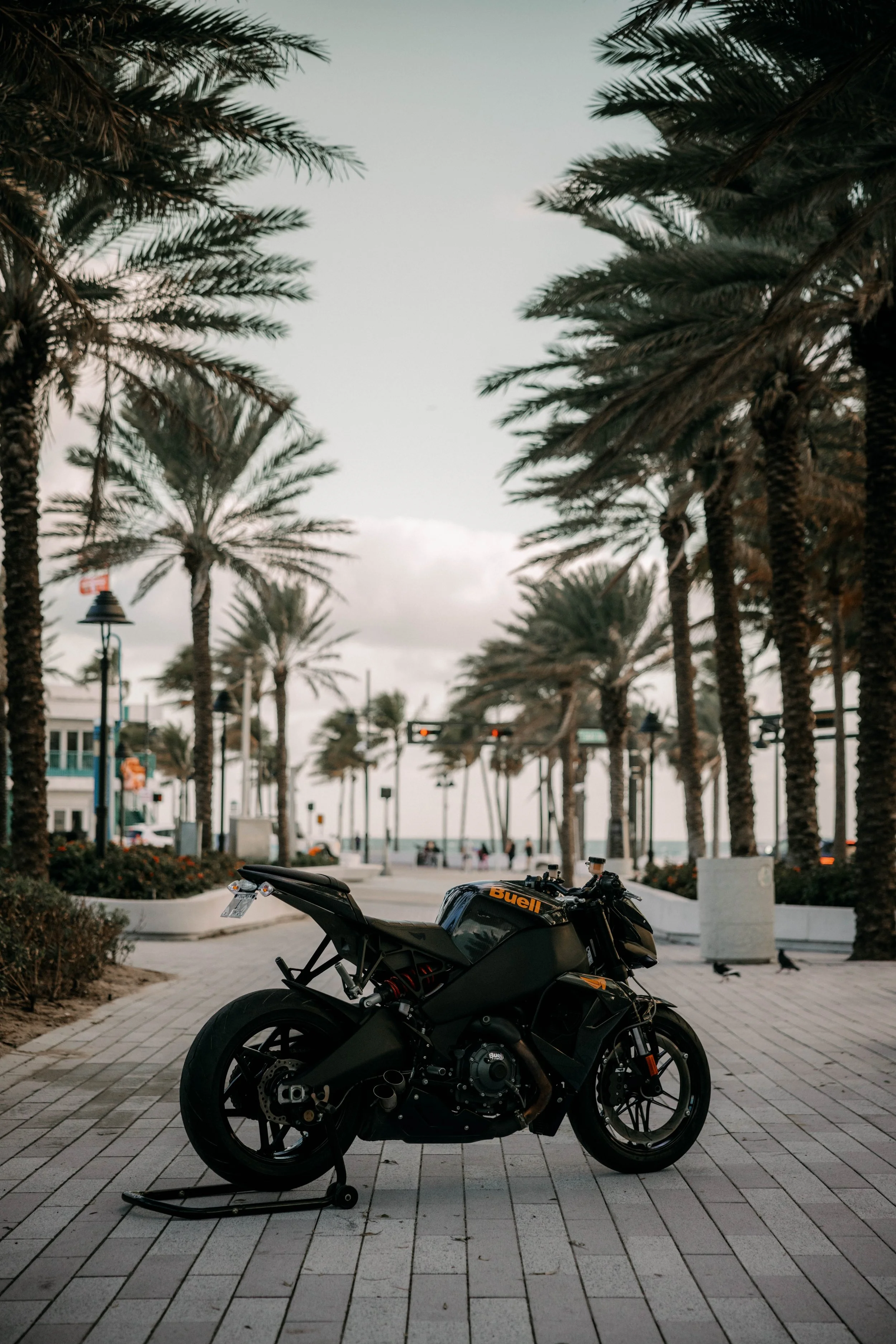

2023 BUELL 1190SX

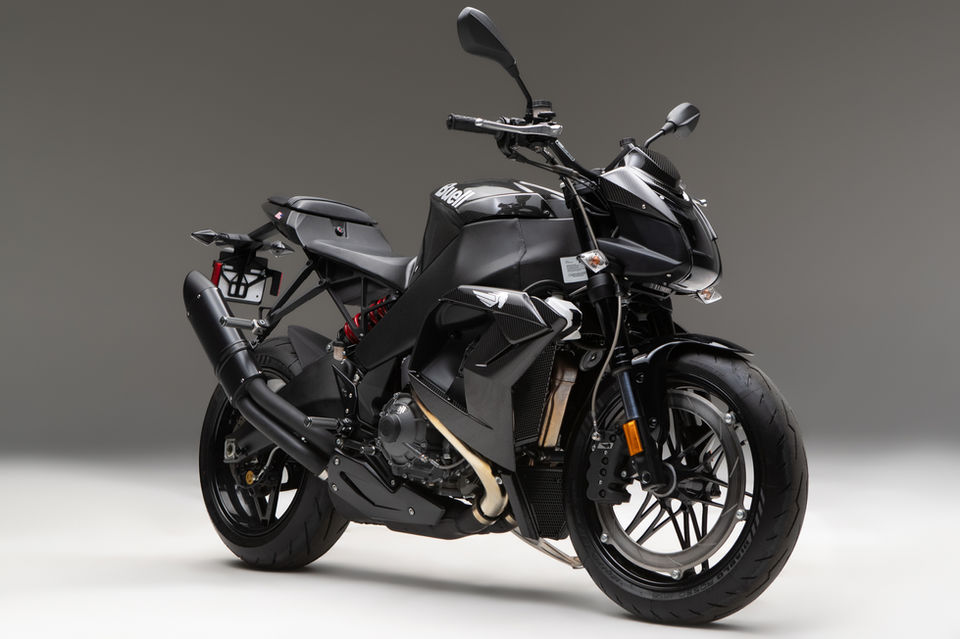

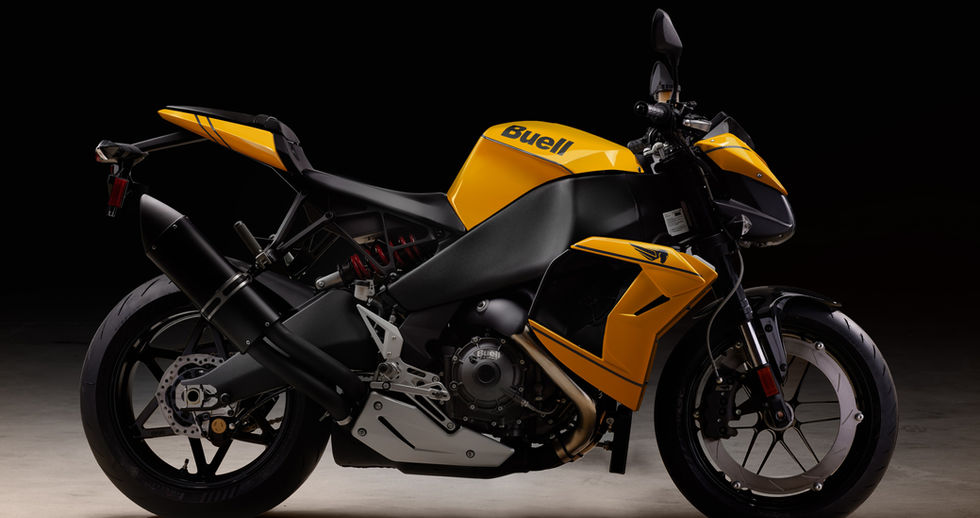

Buell is back featuring the power and technology of a superbike. The Buell 1190SX is a true high-performance motorcycle with a racing heritage. Designed to be a dominating street machine, the 1190SX is equally at home carving canyons on the open road or taking on the concrete canyons of the city.

​

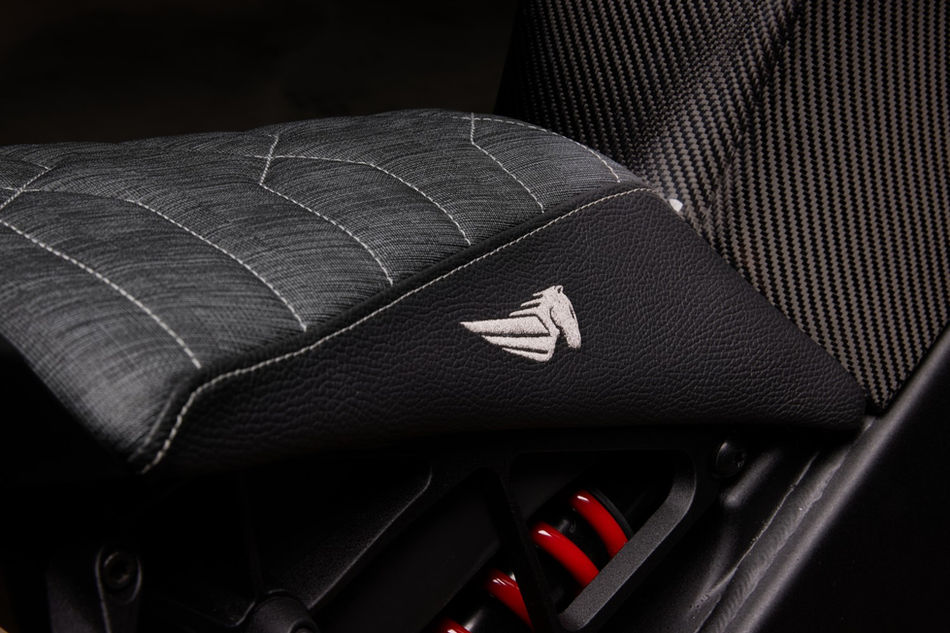

The 2023 Buell 1190SX has been updated with full carbon fiber bodywork & improved ergonomics (including high bars, lower pegs, & handmade seats). Optional sport touring accessories coming soon.

​

 Base models start at $18,995 and top out at $25,995 with several options.

SX_New exhaust (1)_edited.jpg

Thank you. You will be contacted by our sales team within the next 24 hours.

Thank you. You will be contacted by our sales team within the next 24 hours.

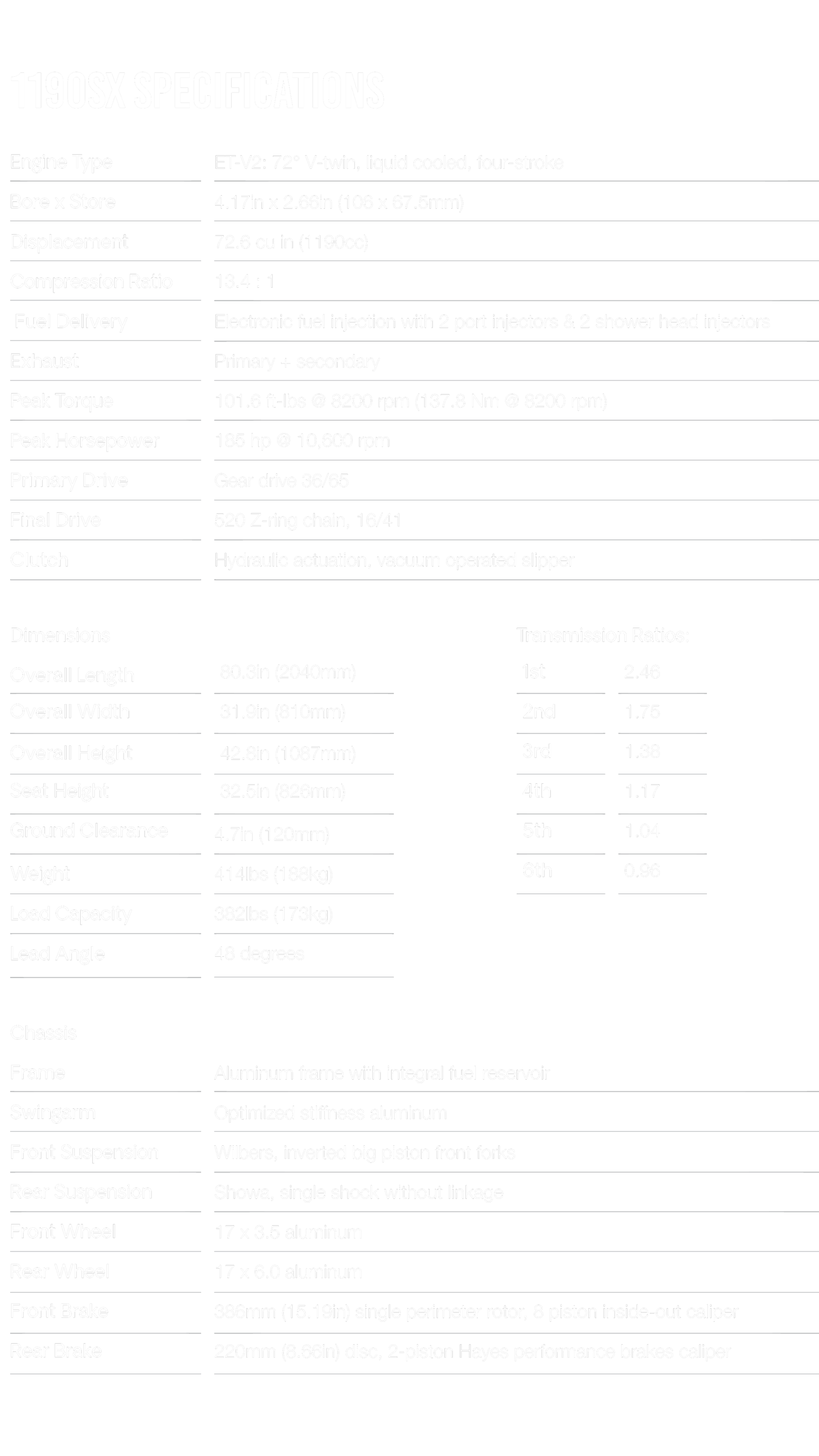

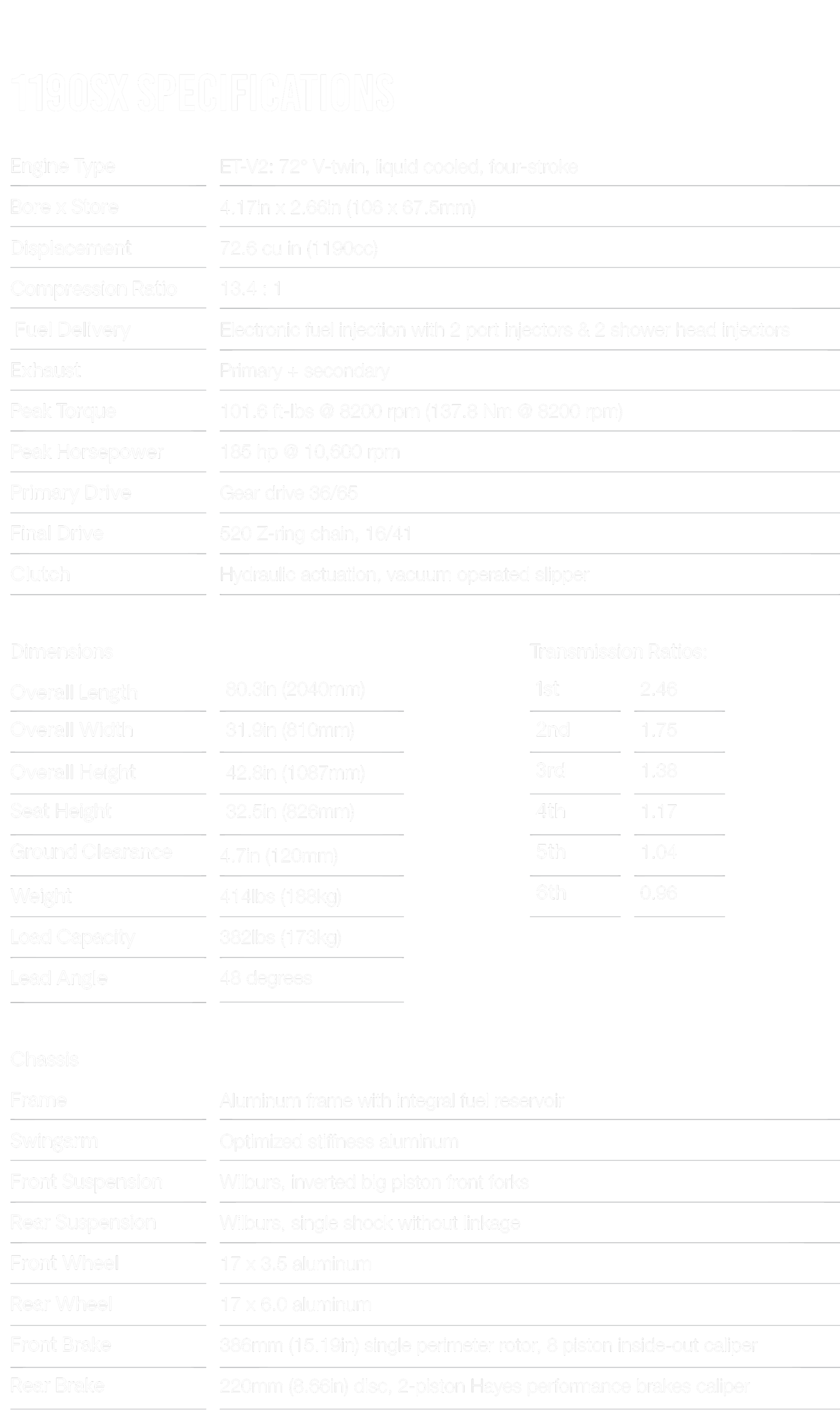

2023 BUELL 1190SX SPECIFICATIONS

Engine Type
Bore x Stroke
Displacement
Compression Ratio
Fuel Delivery


Exhaust
Peak Torque

Peak Horsepower



Drivetrain
Primary Drive
Final Drive
Clutch


Transmission Ratios:


​

​

​

​

​​

Dimensions
Overall Length
Overall Width
Overall Height
Seat Height
Ground Clearance
Weight (Wet, no fuel)
Load Capacity

Lean Angle

​

Chassis
Frame
Swingarm
Front Suspension
Rear Suspension
Front Wheel
Rear Wheel
Front Brake


Rear Brake

​

ET-V2: 72° V-Twin, Liquid Cooled, Four-stroke
4.17 in. x 2.66in. (106 x 67.5 mm)
72.6 cu in. (1190cc)
13.4 : 1
Electronic Fuel injection with

2 port injectors & 2 showerhead injectors
Primary + Secondary
101.6 ft-lbs. @ 8200 rpm (137.8 Nm @ 8200 rpm)
185 hp @ 10,600 rpm




Gear Drive 36/65
520 Z-ring chain, 16/41
Hydraulic actuation, vacuum operated slipper

1st             2.46
2nd           1.75
3rd            1.38
4th            1.17
5th            1.04
6th            0.96

​

​

80.3in. (2040mm.)
31.9in. (810mm)
42.8in. (1087mm)
32.5in. (826mm)
4.7in. (120mm)

​414 lbs (188kg)

382 lbs (173kg)

48 degrees





Aluminum frame with integral fuel reservoir
Optimized stiffness aluminum
Showa, inverted big piston front forks
Showa, single shock without linkage
17 x 3.5 Aluminum
17 x 6.0 Aluminum
386mm (15.19in.) Single perimeter rotor, 8 piston inside-out caliper
220mm (8.66in.) Disc, 2-piston Hayes Performance Brakes Caliper
